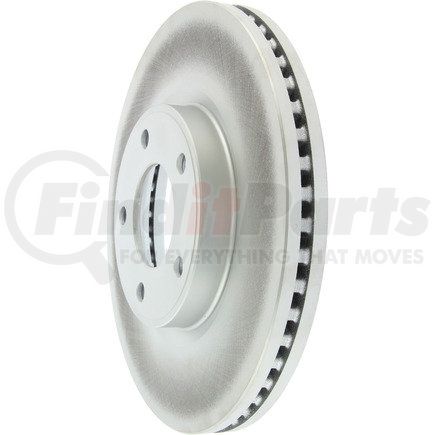

(888) 312-8812 Login SignupCENTRIC 320.61092 Centric GCX Rotor with Partial Coating
Tap to view 4 more
$7749
Limited availability at this price!
In Stock
Get it by Thursday, Dec 18
CENTRIC 320.61092 Part Description
Manufacturer
Product Description
Centric GCX Rotor with Partial Coating
Features & Benefits
- RS200 Coating our exclusive corrosion resistant coating for longer life and good looks; Iron FormulationEnhanced iron and high carbon metallurgies means the right rotor for your car; Operational Efficiency Full coverage with 80% fewer SKUs
CENTRIC 320.61092 Specifications
Product Attributes
| Product Grade [cntrc] | Premium |
| Weight [cntrc] Lbs | 19.270 |
| Disc Mounting [cntrc] | Floating |
| Weight [cntrc] Kgs | 8.760 |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Misc Holes [cntrc] | 0 |
| Vane Style [cntrc] | Straight |
| Discard Thickness | 1.024 IN |
| Discard Thickness | 26.000 MM |
| Nominal Thickness | 28.000 MM |
| Nominal Thickness | 1.102 IN |
| Disc Finish | Partially Coated |
| Hat Finish | Coated |
| Overall Height | 48.300 MM |
| Overall Height | 1.902 IN |
| Outside Diameter | 296.000 MM |
| Outside Diameter | 11.654 IN |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Bearings Included | No |
| Center Hole Diameter | 2.835 IN |
| Center Hole Diameter | 72.000 MM |
| Mounting Bolt Hole Circle Diameter | 114.300 MM |
| Mounting Bolt Hole Circle Diameter | 4.500 IN |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Diameter | 14.000 MM |
| Stud/Lug Hole Diameter | 0.551 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 889590301724 |
CENTRIC 320.61092 Part Interchanges
| Brand | Part Number |
|---|---|
| Raybestos Brakes | 680545, 680545FZN, 680545R |
CENTRIC 320.61092 Cross References
We have 3 alternatives for the 320.61092 by CENTRIC:
