CENTRIC 320.65055 Part Description
Manufacturer
Product Description

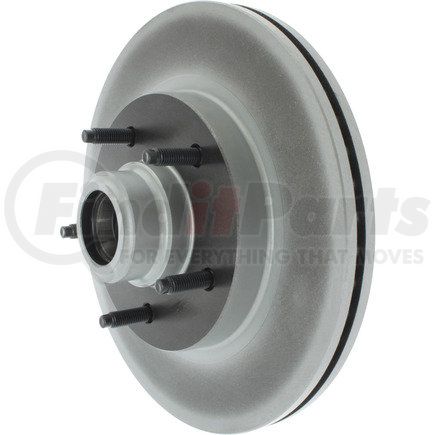

Centric GCX Rotor with Partial Coating
Features & Benefits
- RS200 Coating our exclusive corrosion resistant coating for longer life and good looks; Iron FormulationEnhanced iron and high carbon metallurgies means the right rotor for your car; Operational Efficiency Full coverage with 80% fewer SKUs
CENTRIC 320.65055 Specifications
Product Attributes
| Inner Seal # [cntrc] | 417.65000 |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Weight [cntrc] Kgs | 12.270 |
| Inner Bearing # [cntrc] | 410.91018 |
| Disc Mounting [cntrc] | Hub & Rotor |
| Weight [cntrc] Lbs | 27.000 |
| Misc Holes [cntrc] | 0 |
| Vane Style [cntrc] | Straight |
| Outer Bearing # [cntrc] | 410.91012 |
| Product Grade [cntrc] | Premium |
| Discard Thickness | 24.700 MM |
| Discard Thickness | 0.972 IN |
| Nominal Thickness | 25.700 MM |
| Nominal Thickness | 1.012 IN |
| Disc Finish | Partially Coated |
| Hat Finish | Coated |
| Stud Thread Diameter | 12.000 MM |
| Overall Height | 104.000 MM |
| Overall Height | 4.094 IN |
| ABS Tone Ring Included | Yes |
| Surface Type | Smooth |
| Rotor Outside Diameter | 308.000 MM |
| Rotor Outside Diameter | 12.126 in |
| Solid Or Vented Type Rotor | Vented |
| Bolt Thread Pitch | 1.750 MM |
| Bearings Included | No |
| Center Hole Diameter | 86.700 MM |
| Center Hole Diameter | 3.413 IN |
| Mounting Bolt Hole Circle Diameter | 135.000 MM |
| Mounting Bolt Hole Circle Diameter | 5.315 IN |
| Stud/Lug Hole Quantity | 5 |
Additional Information
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 00889590302059 |
