CENTRIC 320.83016 Part Description
Manufacturer
Product Description

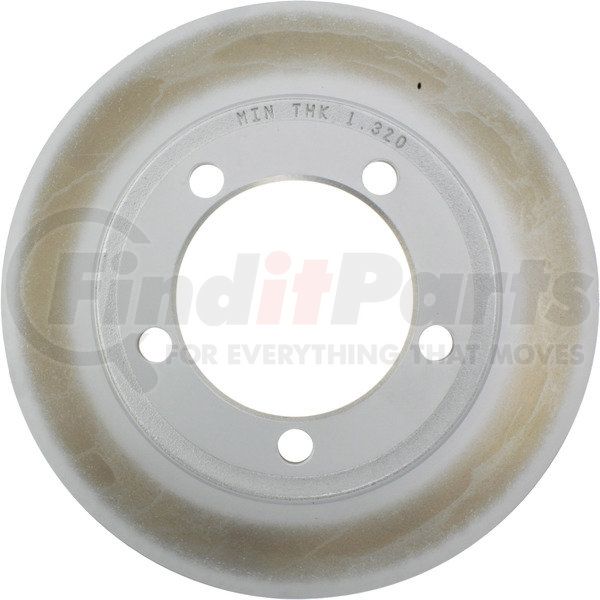

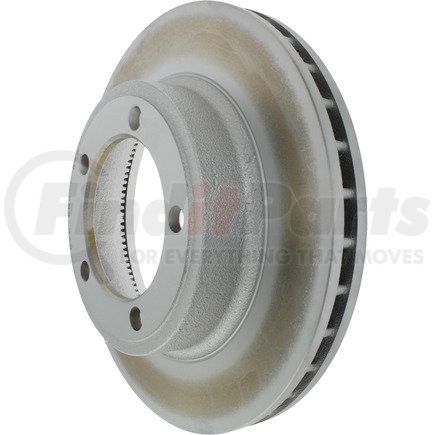

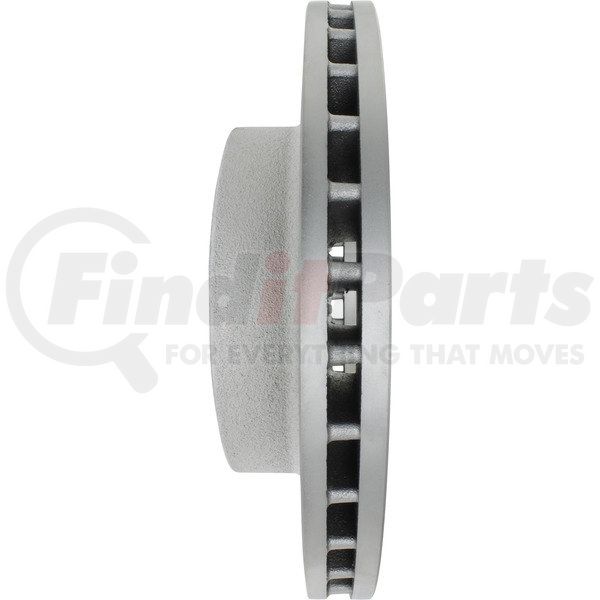

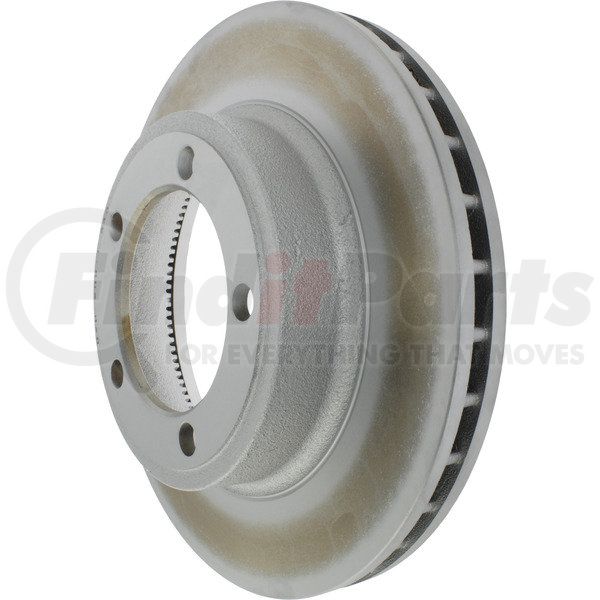

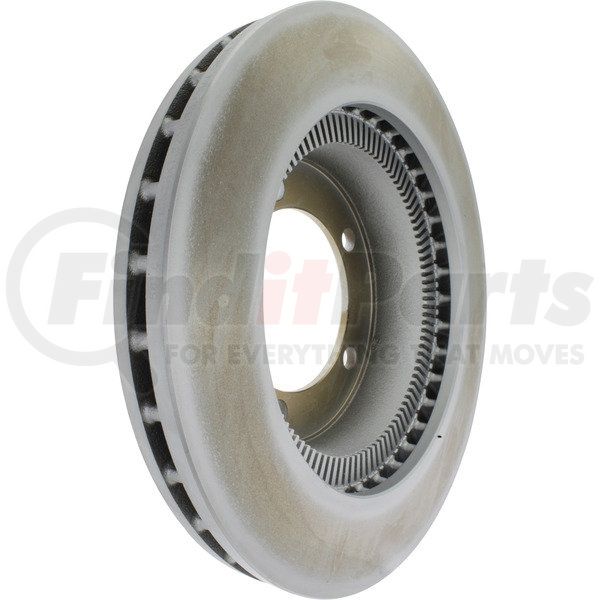

Centric GCX Rotor with Partial Coating
Features & Benefits
- RS200 Coating our exclusive corrosion resistant coating for longer life and good looks; Iron FormulationEnhanced iron and high carbon metallurgies means the right rotor for your car; Operational Efficiency Full coverage with 80% fewer SKUs
- For the best corrosion resistance
- RS200™ Zinc-Aluminum Rich Coating
- Optimal Surface Finish
- For consistent and confident braking from the first stop
- Carbon Enhanved Advanced Metallurgy
- For optimal heat transfer and structural strength
- OE Vane Design and Plate Thickness
- For heat capacity and strength
- Low Initial Lateral Run-Out
- For smooth vibration free stopping
- Precision Balance
- For vibration free performance
CENTRIC 320.83016 Specifications
Product Attributes
| Product Grade [cntrc] | Premium |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Weight [cntrc] Lbs | 37.000 |
| Notes [cntrc] | Hat Shaped, Cast in ABS Ring |
| Vane Style [cntrc] | Straight |
| Weight [cntrc] Kgs | 16.820 |
| Disc Mounting [cntrc] | Behind the Hub |
| Misc Holes [cntrc] | 0 |
| Discard Thickness | 1.320 IN |
| Discard Thickness | 33.530 MM |
| Nominal Thickness | 36.500 MM |
| Nominal Thickness | 1.437 IN |
| Disc Finish | Partially Coated |
| Hat Finish | Coated |
| Overall Height | 89.000 MM |
| Overall Height | 3.504 IN |
| Outside Diameter | 381.000 MM |
| Outside Diameter | 15.000 IN |
| Mounting Bolt Hole Quantity | 5 |
| ABS Tone Ring Included | Yes |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Bearings Included | No |
| Center Hole Diameter | 5.394 IN |
| Center Hole Diameter | 137.000 MM |
| Mounting Bolt Hole Circle Diameter | 171.500 MM |
| Mounting Bolt Hole Circle Diameter | 6.752 IN |
| Mounting Bolt Hole Diameter | 19.600 MM |
| Mounting Bolt Hole Diameter | 0.772 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 00889590297256 |
