(888) 312-8812 Login SignupGATES 24419 Premium Modular Coolant Hose
$6649
Limited availability at this price!
In Stock
Get it by Wednesday, Jun 24
GATES 24419 Part Description
Manufacturer
Product Description

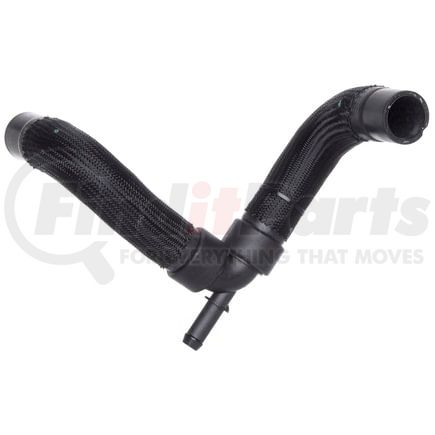

Premium Modular Coolant Hose
Application Summary
2020-14 Ford, Fusion, 4-Cyl. 1.5 L, Lower
Features & Benefits
- Specifically-engineered materials resist collapse under vacuum
- Specifically-engineered materials resist collapse under vacuum
- Engineered to resist electrochemical degradation - the leading cause of hose failure
- Engineered to resist electrochemical degradation – the leading cause of hose failure
- EPDM tube; synthetic fiber knit reinforcement, heat-, ozone- and chemical coolant-resistant EPDM cover
- Manufactured with OEM-exact hose components (quick connects, branch connectors/tees, sensors, etc.)
- Meets SAE 20R3 EC Class D1 under 25mm (1 in.) ID, SAE 20R4 EC Class D1 for 25mm (1 in.) ID and over
- Temperature Range: -40 Deg. F to +257 Deg. F (-40 Deg. C to +125 Deg. C)
- Note: Gates recommends replacing clamps each time a new coolant hose is installed
- Caution: Do not use for fuel or oil transfer applications
GATES 24419 Specifications
Product Attributes
| Centerline Length | 21.5 IN |
| Modular | Yes |
| Modular Components Included | Outlet |
| Branch Quantity | 0 |
| Quick Connect Fitting Quantity | 0 |
| End 1 Inside Diameter | 1.32 in |
| End 2 Inside Diameter | 1.32 in |
| Contains Spring | No |
| Material | EPDM, Plastic |
| Molded | Yes |
| Centerline Length | 546 MM |
| End 1 Inside Diameter | 34 MM |
| End 2 Inside Diameter | 34 MM |
Additional Information
| Country of Origin (Primary) | MX |
| Harmonized Tariff Code (Schedule B) | 4009310000 |
| Stock Status | S |
| UPC | 00770075671985 |
| VMRS Code | 042004014 |
| UNSPSC | 40142000 |
GATES 24419 Cross References
| Brand | Part Number |
|---|---|
| ACDelco | 22850M |
| CONTINENTAL AG | 67293 |
| Continental Belt | D92190 |
| Dayco | 73088, D73088 |
| Duralast | D92190 |
| Ford | DG93 8286 LA, DG93 8286 LB, DG9Z 8286 J, DG9Z 8286 L |
| Goodyear | 67293 |
| Motorcraft | KM5236, KM5419 |
| NAPA Belts/Hose | 17085 |
GATES 24419 Fits Vehicles
- Ford Fusion (2014-2020)
