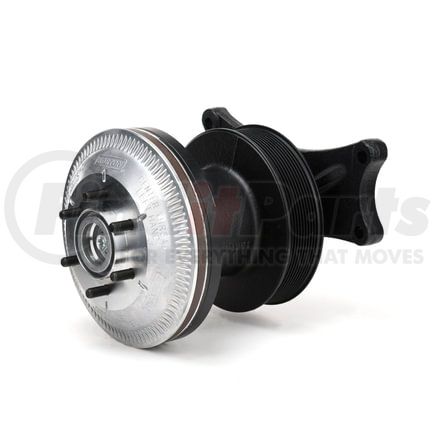

(888) 312-8812 Login SignupHORTON 99A7201 CLUTCH*DMA SE 21*HDEP,173.0,10-PK,20.7 PLT,65.2 STUDS
Tap to view 3 more
SHIPS TODAY
MSRP: $3,460.69
$1,83999
Save $1,620.70
+$533.33 core deposit
Total price w/ core: $2,373.32
In Stock
Get as soon as Wednesday, Oct 7
HORTON 99A7201 Part Description
Manufacturer
Product Description
Engine Cooling Fan Clutch
Features & Benefits
- New DM Advantage fan clutch replaces the non-reman service unit
- Directs cooling airflow by changing fan-drive engagement state
- On-off fan-drive design uses spring engagement and air disengagement
- Enables heavy-duty engine-cooling service with the Horton configuration
Horton DM Advantage Fan Clutch
When your engine-cooling system needs the matching Hino/Horton fan-drive clutch, the Horton DM Advantage Fan Clutch controls when the cooling fan engages. In that application, the clutch couples or releases fan drive according to its control method so airflow is available when cooling demand rises. Engine application and fan-drive style separate this clutch from nearby cooling-system options. With the Horton 99A7201, that keeps the cooling repair tied to the correct fan-drive operation for the engine.
HORTON 99A7201 Specifications
Product Attributes
| BELT CONFIGURATION | - |
| BACK PULLEY DIAMETER | 6.85 |
| Center of JB To Top Right Mounting Hole | - |
| HORIZONTAL MOUNTING DISTANCE | 8.66 |
| VERTICAL MOUNTING DISTANCE | 2.83 |
| FAN PILOT DIAMETER | 2.56 |
| Fan Bolt Circle | 3.5 |
| FRONT PULLEY DIAMETER | - |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8483604040 |
| Harmonized Tariff Code (HTS) | 8483604040 |
| NAFTA Preference Criterion Code | B |
| OEM's Part Number | 98A7201 |
| Warranty Distance | 300000 |
| Warranty Distance UOM | DH |
| Warranty Special | 7500 Hours |
| Warranty Special UOM | TX |
| Warranty Time | 36 |
| Warranty Time UOM | MO |
| VMRS Code | 042003131 |
HORTON 99A7201 Cross References
| Brand | Part Number |
|---|---|
| BorgWarner | 10023866, 10023867, 10026419 |
| Daimler Truck North America | HOR 99A7201X |
| Freightliner | HOR 99A7201, HOR 99A7201X |
| Horton | 79A7201, 98A7201 |
| KIT MASTERS | 98621 |
| MCI | HOR99A7201 |
| Navistar | HOR99A7201 |
| Paccar Parts | 99A7201 |
