(888) 312-8812 Login SignupCENTRIC 125.20036 Centric Premium High Carbon Alloy Brake Rotor
Tap to view 4 more
$14999
Limited availability at this price!
In Stock
Get it by Thursday, Dec 18
CENTRIC 125.20036 Part Description
Manufacturer
Product Description

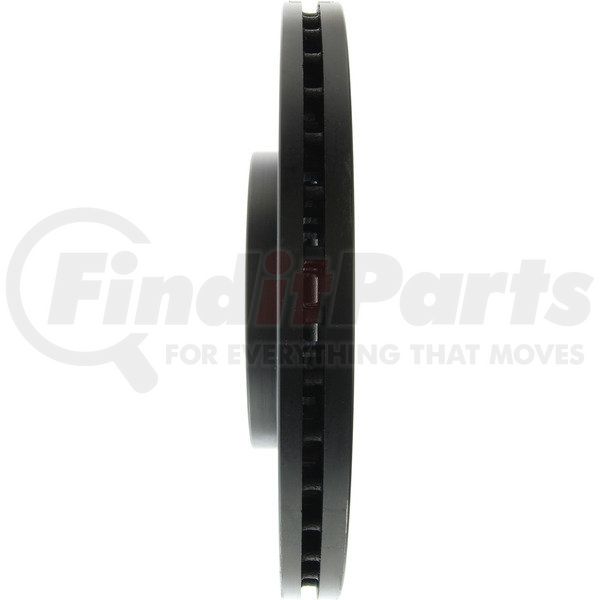

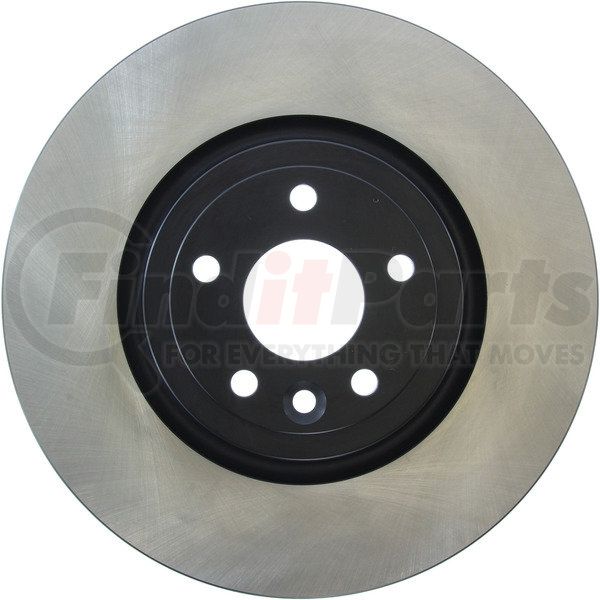

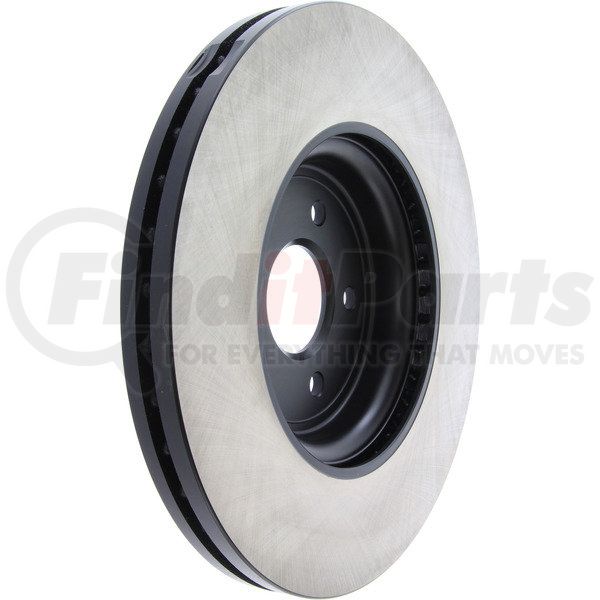

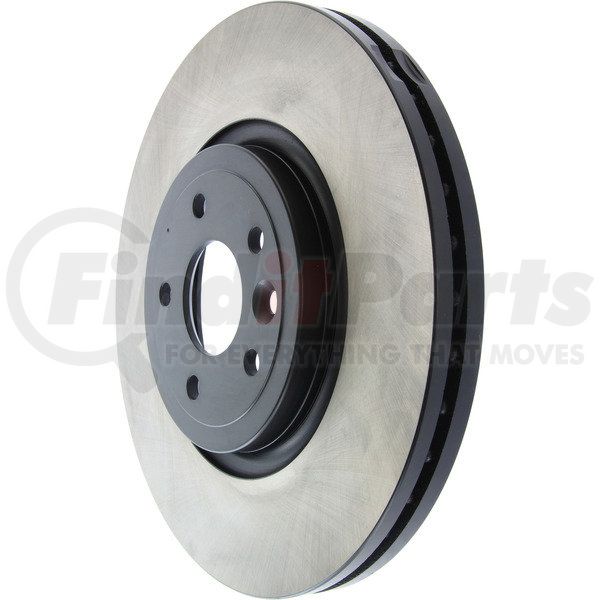

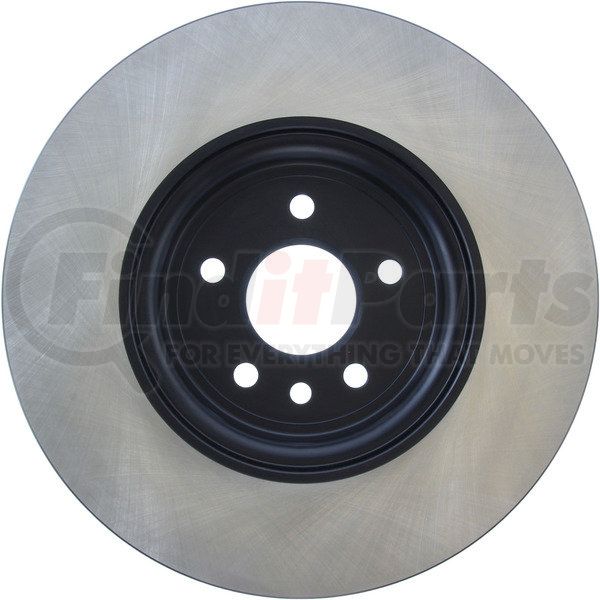

Centric Premium High Carbon Alloy Brake Rotor
Features & Benefits
- Centric Premium Rotor with advanced metallurgy that greatly reduces pad squeal. Especially effective with higher friction; European style brake pad compounds. Added Molybdenum and Chromium to resist rotor cracking
CENTRIC 125.20036 Specifications
Product Attributes
| Weight [cntrc] Lbs | 24.000 |
| OEM Vane Count [cntrc] | 117 |
| Product Grade [cntrc] | Premium |
| Hat Id [cntrc] In | 6.236 |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Disc Mounting [cntrc] | Floating |
| Vane Style [cntrc] | Pillar |
| Hat Id [cntrc] Mm | 158.400 |
| Weight [cntrc] Kgs | 10.880 |
| Misc Holes [cntrc] | 1 |
| Discard Thickness | 28.000 MM |
| Discard Thickness | 1.102 IN |
| Nominal Thickness | 30.000 MM |
| Nominal Thickness | 1.181 IN |
| Hat Finish | Coated |
| Overall Height | 48.300 MM |
| Overall Height | 1.902 IN |
| Outside Diameter | 325.000 MM |
| Outside Diameter | 12.795 IN |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Bearings Included | No |
| Center Hole Diameter | 2.500 IN |
| Center Hole Diameter | 63.500 MM |
| Stud/Lug Hole Diameter | 13.600 MM |
| Stud/Lug Hole Diameter | 0.535 IN |
| Stud/Lug Hole Quantity | 5 |
| Mounting Bolt Hole Circle Diameter | 4.252 IN |
| Mounting Bolt Hole Circle Diameter | 108.000 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 889590216219 |
CENTRIC 125.20036 Part Interchanges
| Brand | Part Number |
|---|---|
| Raybestos Brakes | 982009 |
| N/A | 45943, T4N1801, 121.20036 |
CENTRIC 125.20036 Fits Vehicles
- Jaguar XF (2017-2022)
- Jaguar XE (2016-2020)
CENTRIC 125.20036 Cross References
We have 1 alternatives for the 125.20036 by CENTRIC:
