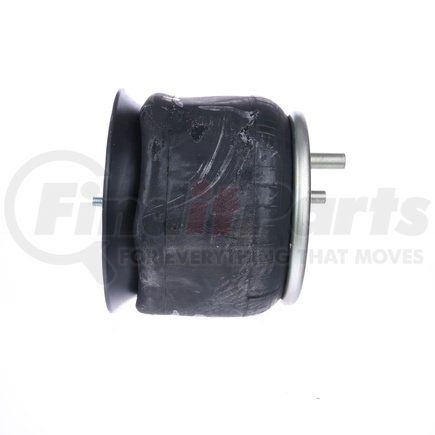

(888) 312-8812 Login SignupMERITOR MAF9978 Air Suspension Spring, 10.16 in. Bead Plate Diameter Bottom, 9.00 in. Bead Plate Diameter Top
Tap to view 1 more
MSRP: $447.17
$23599
Save $211.18
Limited availability at this price!
In Stock
Get it by Tuesday, Jul 14
MERITOR MAF9978 Part Description
Manufacturer
Product Description
Suspension, Air Spring, Reversible Sleeve Style
Features & Benefits
- Withstands regular exposure to flying gravel, grease, and harsh winter de-icing chemicals
- Facilitates smooth rolling action over the piston for consistent dampening under load
- Steel bead plates are crimped with extreme precision to eliminate high pressure leaks
- Piston components resist stone puncturing and impact damage on muddy job sites

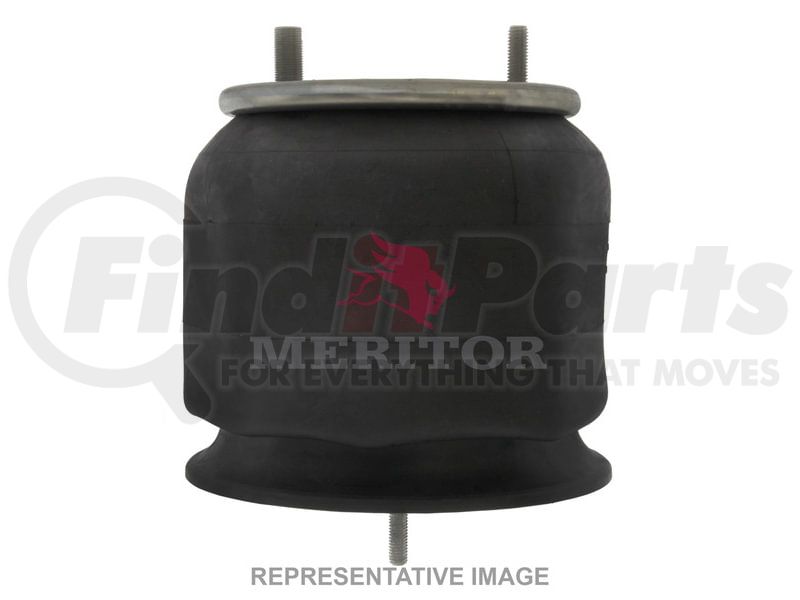

Meritor Air Suspension Spring
The Meritor Air Suspension Spring absorbs heavy highway impacts to cushion your chassis and preserve fragile cargo. Slouching trailers, a rough-riding rear tandem, or visible dry rot cracks along the bellows indicate your airbags are ready to burst. Re-establishing full ride height and proper load equalization is as simple as installing the Meritor MAF9978 in your suspension bay. This premium air bag component keeps your suspension moving smoothly through its full travel range while protecting expensive frame parts from bottoming out.
| Bead Plate Diameter Bottom | 10.16 in. |
| Bead Plate Diameter Top | 9.00 in. |
| Collapsed Height | 7.90 in. |
| Convoluted Style | 1T Reversible Sleeve |
| Max. Height | 18.00 in. |
| Part Diameter | 10.12 in. |
| Piston Height | 5.69 in. |
| Stud Configuration-Bottom | 1 |
| Stud Configuration-Top | 2 |
| Stud Mount-Bottom Flat | Stud |
| Stud Mount-Top Flat | Stud |
| VMRS Code | 016-008-001 |
Meritor Air Suspension Spring
Meritor air suspension spring protects tractors and trailers from road shocks and keep your ride a comfortable one. This aftermarket air spring covers a wide range of OEM specifications at affordable prices.
Features & Benefits
- Lightweight, high-strength pistons with support washers provide exceptional strength and durability
- Made of premium-grade steel and aluminum with electrostatic coating for oxidation resistance
- Special chromium coating on bead plate protects against rust, corrosive chemicals, and harsh operating environments
- Piston components resist stone puncturing and impact damage on muddy job sites
MERITOR MAF9978 Specifications
Product Attributes
| Bead Plate Diameter Bottom | 10.16 in. |
| Bead Plate Diameter Top | 9.00 in. |
| Brand | Meritor |
| Collapsed Height | 7.90 in. |
| Convoluted Style | 1T Reversible Sleeve |
| Max. Height | 18.00 in. |
| Pallet Quantity | 36 |
| Part Diameter | 10.12 in. |
| Piston Height | 5.69 in. |
| Stud Configuration-bottom | 01 |
| Stud Configuration-top | 02 |
| Stud Mount-bottom Flat | Stud |
| Stud Mount-top Flat | Stud |
| Weight | 14.25 |
| Air Spring Type | Reversible Sleeve |
| Max Height | 18.00 in. |
MERITOR MAF9978 Cross References
| Brand | Part Number |
|---|---|
| ABHS28929, FAW013589978, FS9978, FSIW013589978, HNS28929, HTSS28929 | |
| AUTOMANN | ABHS28929 |
| Automann | 566ER9978 |
| CONTITECH | 91014P959 |
| Continental-ContiTech | 91014P959 |
| DAYTON PARTS | 452-9978L |
| FIRESTONE | W013589978 |
| Firestone Ride-Rite | W013589978 |
| Hendrickson | S28929 |
| TORQUE PARTS | TR9978 |
MERITOR MAF9978 Customer Reviews
No reviews yet
Be the first to review this product!
MERITOR MAF9978 Manufacturer Information
Meritor®, whose roots could be traced back to 1909, is backed by over 100 years of industry experience plus a massive portfolio of products for various industries. In 1998, it made several acquisitions, including Volvo Trucks' heavy vehicle manufacturing operation in Sweden, Euclid Industries, and Lucas Varity's Heavy Vehicle Braking Systems division. Such investments solidify Meritor's position as the leading global supplier of brakes, axles, drivelines, transmissions, suspensions, tire inflations systems, and a whole lot of parts, hardware, and accessories for the automotive, truck, trailer, rail cars, bus and coach, and many other applications. Its "Run with the Bull" global brand identity further strengthens its commitment to provide the industry with durable products, unparalleled service and support, and continuous innovation.
MERITOR MAF9978 Questions & Answers
No questions yet
Be the first to ask a question about this product!
