OSC HD1182 Part Description
Manufacturer
Product Description

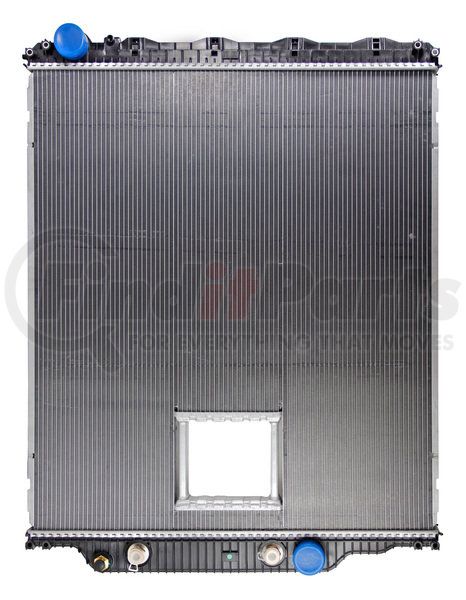

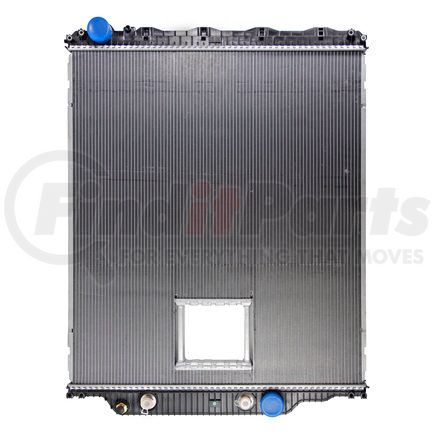

OSC Automotive Products HD1182 Heavy-Duty Radiator
Application Summary
2006-2010 MACK GU GRANITE W/PTO /VOLVO VHD W/PTO
Features & Benefits
- Designed with drop-in fit, form, and function. Radiators undergo State of the Art testing during production including: Cycle, Vibration, Burst and Environment. Innovative design that and improve the life of high mileage vehicles.
| MAKE | MACK |
| YEAR | 2006-2010 |
| MODEL/APPLICATION | GU GRANITE W/PTO /VOLVO VHD W/PTO |
| CORE HEIGHT | 39-3/8 |
| CORE WIDTH W/O SIDE RAILS | 34-3/16 |
| CORE THICKNESS | 2-1/16 |
| CORE HEIGHT | 1000 |
| CORE WIDTH W/O SIDE RAILS | 868 |
| CORE THICKNESS | 52 |
| INLET HEADER | 2-13/16 x 35-3/16 |
| OUTLET HEADER | 2-13/16 x 35-3/16 |
| INLET CONNECTION | 64 |
| OUTLET CONNECTION | 64 |
| INLET CONNECTION | 2-1/2" |
| OUTLET CONNECTION | 2-1/2" |
| CONSTRUCTION | PA/52MM/AT |
| HEADER STYLE | RH |
| TOC MATERIAL | AL |
| TOC SPECIFICATIONS | 292H8×7/8-14UNF |
| EOC SPECIFICATIONS | NO |

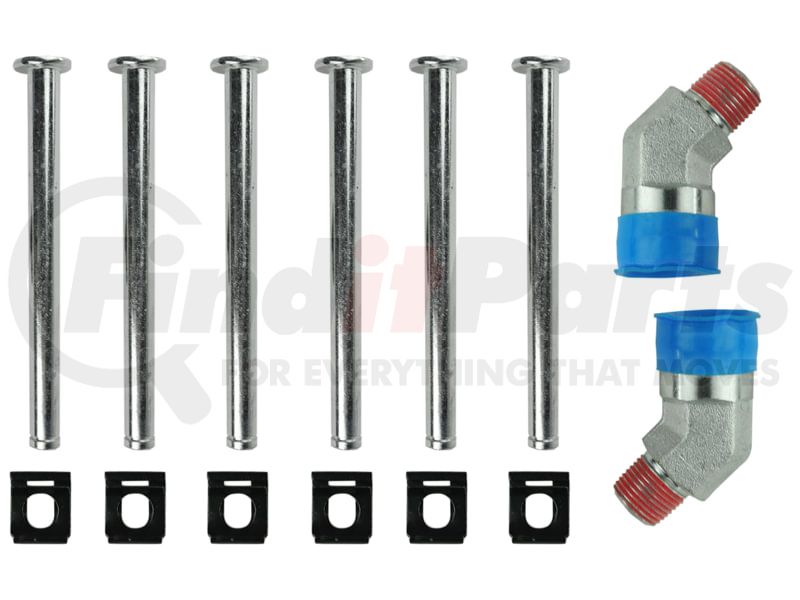

| KIT NOTES | Kit#28 |
| Box Height (mm) | 1315 |
| Box Width (mm) | 220 |
| Box Length (mm) | 1035 |
| Box Size (cu m) | 0.299 |
| Net Weight (kg) | 21.35 |
| Gross Weight (kg) | 26.14 |
OSC HD1182 Specifications
Product Attributes
| Core Height | 39-3/8 IN |
| Core Width | 34-3/16 IN |
| Core Thickness | 2-1/16 IN |
| Core Height | 1000 MM |
| Core Width | 868 MM |
| Core Thickness | 52 MM |
| Inlet Header Width | 2-13/16 IN |
| Inlet Header Length | 35-3/16 IN |
| Outlet Header Width | 2-13/16 IN |
| Outlet Header Length | 35-3/16 IN |
| Inlet Diameter | 64 MM |
| Outlet Diameter | 64 MM |
| Inlet Diameter | 2-1/2" IN |
| Outlet Diameter | 2-1/2" IN |
| Core Material | PLASTIC ALUMINUM |
| Header Style | RH |
| TOC Material | AL |
| ASIN | B01N7TPNBK |
Additional Information
| Country of Origin (Primary) | CN |
| Original Supplier | OSC |
| Original Supplier Part Number | HD1182 |
| Harmonized Tariff Code (Schedule B) | 8708915000 |
| Warranty Special | See Rep |
| Warranty Special UOM | SR |
| UPC | 00845804090952 |
OSC HD1182 Cross References
OSC HD1182 Customer Reviews
No reviews yet
Be the first to review this product!
OSC HD1182 Manufacturer Information
OSC® produces enhanced and specialized units to help keep trucks and other large vehicles on the road longer. Some vehicles will be on the road for up to 500,000 miles, so it is critical that they are equipped with high-quality automotive parts that are also up for the journey. OSC Automotive particularly specializes in the manufacture of condensers, heaters, and radiators. The company operates in two main U.S. locations: a west coast location in Fullerton, CA and an east coast location in Duluth, GA. All of its products are produced with the goal to meet or surpass OE-quality standards.
