(888) 312-8812 Login SignupMONROE 911336 OESpectrum Rear Suspension Shock Absorber
Tap to view 11 more
MSRP: $70.49
$5199
Save $18.50
Limited availability at this price!
In Stock
Get it by Thursday, Aug 13
MONROE 911336 Part Description
Manufacturer
Product Description

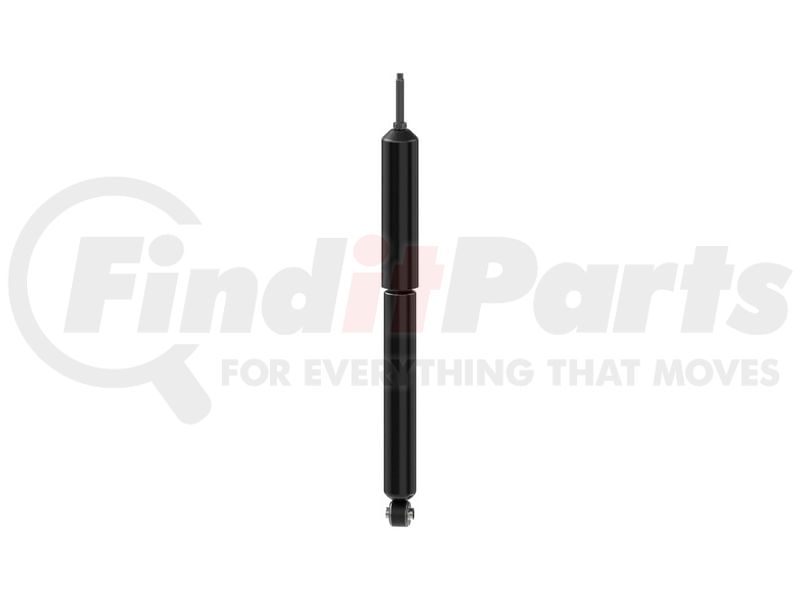

OESpectrum Rear Suspension Shock Absorber
Features & Benefits
- CONSISTENT RIDE -- OE all-weather fluid contains special additives to assist with extreme temperatures and help reduce oil breakdown
- IMPROVES PERFORMANCE -- Nitrogen gas-charge maintains tire-to-road contact for improved ride and handling by reducing aeration and shock fade
- BUY WITH CONFIDENCE -- Comes with Monroe’s Limited Lifetime Warranty and exclusive Feel the Difference™ Guarantee
MONROE 911336 Specifications
Product Attributes
| Compressed Length | 14.86 IN |
| Compressed Length | 377.4 MM |
| Extended Length | 24.26 in |
| Extended Length | 616.2 MM |
| Travel Length | 9.4 in |
| Travel Length | 238.8 MM |
| Lower Mount Type | Loop Bushing and Sleeve Mount - 9/16" Sleeve ID X 1.5/8" Sleeve OAL |
| Lower Mount Type | Loop (Eyelet) Bushing and Sleeve |
| Lower Mount Code | LS47 |
| Upper Mount Type | Stem Mount - 2 5/8" Stem Length X 1/2"-13 Thread Pitch |
| Upper Mount Code | S5 |
| Shock Absorber Rod End Measuring Point | Base of Stem |
| Shock Absorber Body End Measuring Point | Center of Loop |
| Gas Charged | Yes |
| Mounting Hardware Included | Yes |
| Parts Pack(s) | P01167 |
| Body Diameter | 50.5 MM |
| Body Diameter | 1.988 IN |
| Body Color | Black |
| Cylinder Color | Black |
| Color | Black |
| Cylinder Finish | Painted |
| Dust Shield Included | Yes |
| Includes Bump Stop | No |
| Internal Rebound Bumper | Yes |
| Hydraulic Lockout | No |
| Grade Type | Premium |
| Active or Passive Suspension | Passive |
| Adjustable Compression | No |
| Adjustable Rebound | No |
| Adjustable Ride Height | No |
| Part Description | Shock Absorber |
Additional Information
| MSDS Sheet Number | 01168 |
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708803000 |
| Harmonized Tariff Code (Schedule B) | 8708800050 |
| Harmonized Tariff Code (HTS) | 8708801600 |
| UPC | 00048598193025 |
| VMRS Code | 016008003 |
| UNSPSC | 25172011 |
MONROE 911336 Cross References
| Brand | Part Number |
|---|---|
| Autopart International | 2701603229, 2701603302 |
| BILSTEIN | 24239462 |
| Duralast | TS3433022B |
| FCS | 346436, 346437 |
| Gabriel | G64121 |
| Gold Shock Absorber | 9161111 |
| KYB | 3440020, 3440018, 5540022, 565105, 5540020, 5650009, 3450016, KG5196, 344401, 5650010 |
| KYB AMERICA LLC. | 3440018 |
| MasterPro Shocks and Struts | DG110 |
| NAPA Shocks | 911336, NS911336 |
| OEM | 68233909AC, 68245528AA, 68233917AC, 68233910AB, 68245529AA, 68233927AB, 68233929AA, 68233934AA, 68233904AD, 68233932AA, 68233915AB, 68233924AA, 68245513AB, 68233922AA, 68233919AA, 68233913AB, 68245530AA, 68233917AA, 68233904AC |
| PM Auto | PM6001523, PM6001524 |
| Ram | 68233895AC, 68233895AD, 68233904AC, 68233904AD, 68233905AC, 68233906AC, 68233906AD, 68233909AB, 68233909AC, 68233910AB, 68233910AD, 68233913AA, 68233913AB, 68233913AC, 68233915AA, 68233915AB, 68233917AA, 68233917AC, 68233919AA, 68233919AB, 68233919AC, 68233921AA, 68233921AC, 68233921AD, 68233922AA, 68233922AC, 68233924AA, 68233924AB, 68233924AC, 68233927AA, 68233927AB, 68233929AA, 68233929AC, 68233932AA, 68233932AC, 68233934AA, 68233934AB, 68234529AB, 68234529AD, 68234540AB, 68234541AA, 68234541AB, 68234546AB, 68234546AC, 68234547AA, 68234547AB, 68234548AB, 68234548AC, 68234549AC, 68234549AD, 68234550AC, 68234551AC, 68234552AC, 68234553AD, 68234554AC, 68234555AB, 68234935AD, 68234936AB, 68234937AB, 68234937AC, 68234938AA, 68234938AB, 68234939AB, 68234939AD, 68234950AC, 68234951AD, 68234952AC, 68234952AD, 68234953AC, 68234953AD, 68234954AC, 68234955AC, 68234955AD, 68236428AA, 68236428AB, 68236428AC, 68236456AB, 68236457AB, 68236458AB, 68245508AB, 68245509AB, 68245509AC, 68245509AD, 68245512AB, 68245513AA, 68245513AB, 68245513AC, 68245514AB, 68245526AA, 68245526AB, 68245528AA, 68245528AB, 68245529AA, 68245529AB, 68245530AA, 68245530AB, 68443164AA, 68443166AB, 68443168AB, 68443169AB, 68443181AB, 68443182AB, 68443183AB, 68443184AB, 68443185AB, 68443186AB, 68443188AB, 68443193AB, 68443194AB, 68443195AB, 68443197AB, 68443198AB, 68443199AB, 68443244AB, 68443246AB, 68443247AB, 68443248AB, 68443250AB, 68443252AB, 68443254AB, 68443257AB |
| Ram Trucks | 68233910AB, 68233917AC, 68233917AA, 68233929AA, 68233934AA, 68245528AA, 68233919AA, 68245530AA, 68233909AC, 68233904AD, 68233924AA, 68245513AB, 68233913AB, 68233915AB, 68233922AA, 68233904AC, 68245529AA, 68233927AB, 68233932AA, 68349203AB, 68443195AB, 68443198AB, 68349201AB, 68349197AB, 68443197AB |
| Rancho | RS5044, RS55044 |
| Sensen | 12140663 |
MONROE 911336 Fits Vehicles
- Ram 2500 (2012-2026)
