FRAM CH12069 Part Description
Manufacturer
Product Description

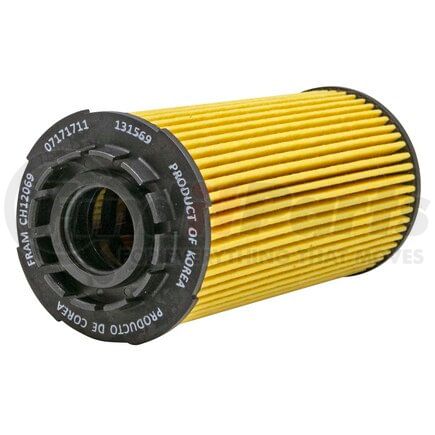

FRAM, CH12069, Oil Filter
Features & Benefits
- Proven protection for up to 10,000 miles (16,000 kilometers)
- Engineered for use with synthetic or conventional motor oils
- Filter media is a blend of fiber and resin that captures 95% of the dirt particles
- The perfect balance of dirt-trapping efficiency and dirt-holding capacity
- Includes gaskets and O-rings manufactured to endure the high pressures and high temperatures in today’s engines
- Includes gaskets and O-rings manufactured to endure the high pressures and high temperatures in today's engines
Cartridge Oil Filter
FRAM CH12069 Specifications
Product Attributes
| Filter Media Material | Cellulose/Synthetic Blend |
| Height | 6.614 IN |
| Grade Type | Regular |
| Filter Type | Cartridge |
| Non Slip Grip | No |
| Anti-Drain Back Valve | No |
| Bypass Relief Valve | No |
| Grade | Advanced |
| Housing Color | NA |
| Inside Diameter Bottom | 0.645 IN |
| Meets Or Exceeds Original Equipment Manufacturer Specifications | Yes |
| New Or Remanufactured | New |
| O-ring Inside Diameter | 2.952 IN |
| O-ring Outside Diameter | 3.282 IN |
| O-ring Thickness | 0.141 IN |
| O-Rings Included | Yes |
| Outer Diameter Bottom | 2.637 in |
| Outer Diameter Top | 2.637 in |
| Replacable Filter | Yes |
| Reusable | No |
| Top Inside Diameter | 0.645 in |
| Torque Nut | No |
| Washable | No |
| Bottom Inside Diameter | 0.645 IN |
| Outside Diameter Top | 2.637 in |
| Replaceable Filter | Yes |
Additional Information
| Country of Origin (Primary) | KR |
| Harmonized Tariff Code (HTS) | 8421230000 |
| Warranty Special | See Rep |
| Warranty Special UOM | SR |
| Warranty Time | 30 |
| Warranty Time UOM | DA |
| UPC | 00009100560902 |
| UNSPSC | 15121501 |
FRAM CH12069 Cross References
| Brand | Part Number |
|---|---|
| ACDelco | PF2262G |
| BALDWIN | P40074 |
| Carquest | 95135 |
| ECOGUARD | X10504 |
| General Motors | 12670806, 12679114, 55595791 |
| LUBER-FINER | P1069 |
| Mobil | P1069 |
| NAPA Gold Filters | 100286 |
| PUREPRO | PL9011 |
| Purolator | L31385 |
| STP | S90170 |
| STP Filters | S90170, S90170XL |
| Service Champ | CF1385 |
| UFI | 25.127.00 |
| WIX FILTERS | 33265 |
| Warner | WP1069 |
| Warner Filters | WP1069 |
| Wix | WL10286 |
FRAM CH12069 Fits Vehicles
- Suzuki Aerio (2002)
- Chevrolet Colorado (2016-2022)
- GMC Canyon (2016-2022)
