(888) 312-8812 Login SignupREACH COOLING 61-1246 Charge Air Cooler
Tap to view 6 more
$1,10249
Limited availability at this price!
In Stock
Get it by Thursday, Jul 16
REACH COOLING 61-1246 Part Description
Manufacturer
Product Description

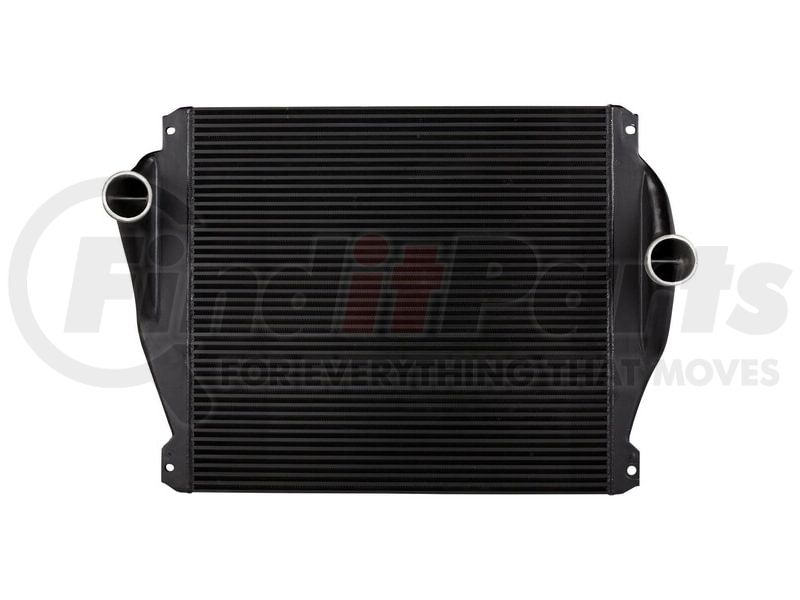

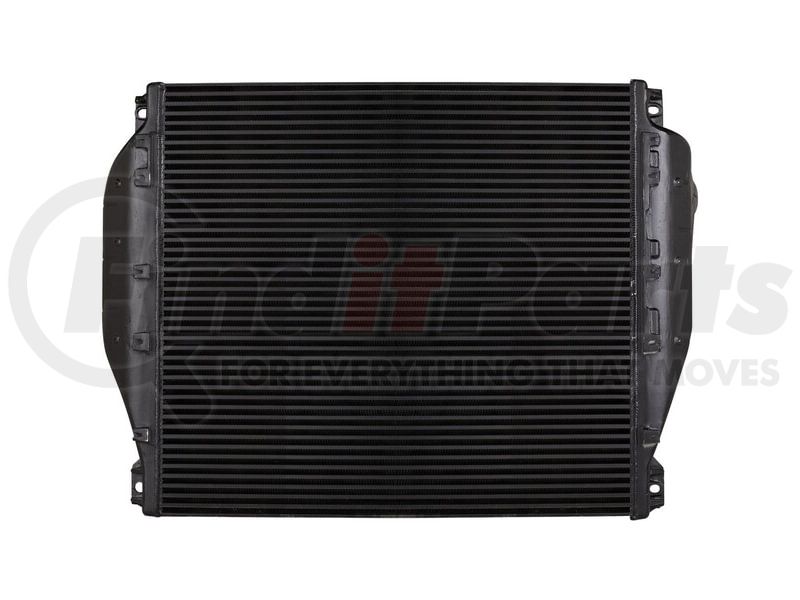

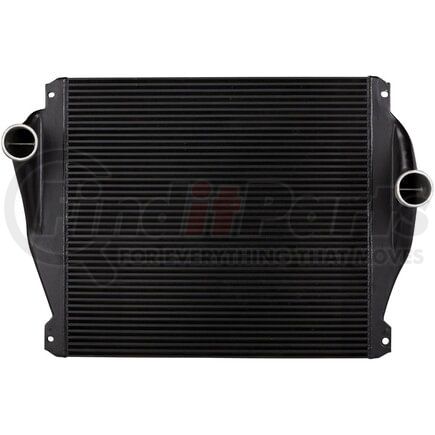

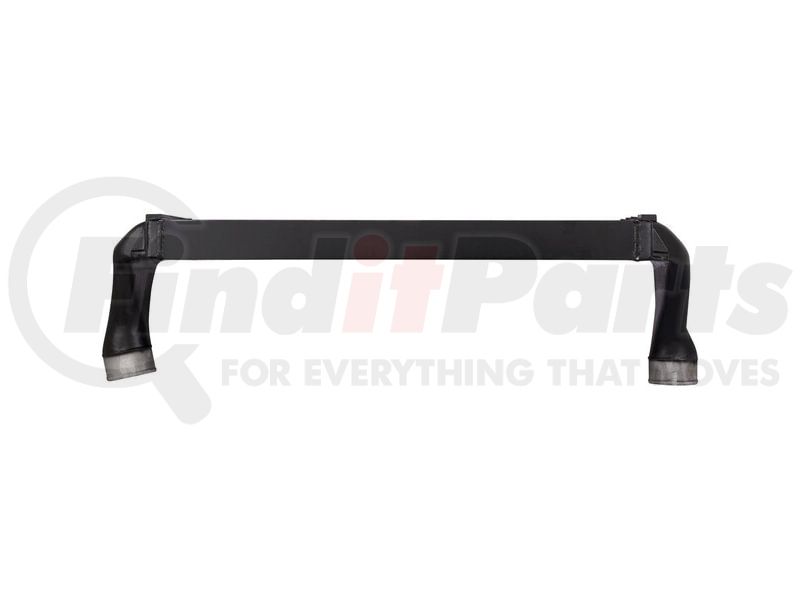

Charge Air Cooler
Application Summary
Freightliner:2008 Argosy/2008-2009 Business Class M2/2008-2013 Cascadia/2008-2011 Century Class/2008-2009 Classic/2008-2011 Columbia/2008-2009 Coronado; Western Star:2008-2011 4900EX/2008-2012 4900FA/2008-2011 4900SA
Features & Benefits
- Reinforcement Rib: Tubes feature a reinforcing rib to increase material strength.
- Flat Tube Wall Thickness: Flat tube wall thickness is no less than .55mm to maximize ability to withstand added pressure.
- Reach charge air coolers are built to withstand the pressures of long hauls. From the product design to the package it is shipped in, every consideration is taken to ensure longevity and peak performance.
- Deep Extrusion Header: Our deep extrusion header provides a stronger tube to header joint which is more resistant to the effects of vibration and thermal tube expansion.
- Reinforced Aluminum Alloy: Header reinforced with aluminum bronze to increase strength by 50%.
- 7 Layer Packaging: Each charge air cooler is packaged in a heavy duty, 7 layer corrugated box to ensure best protection during transit.
- Header Plate Bond: We use a wider angle header plate bond to eliminate the risk of header cracking.
- Our charge air coolers are built to withstand the pressures of long hauls. From the product design to the package it is shipped in, every consideration is taken to ensure longevity and peak performance.

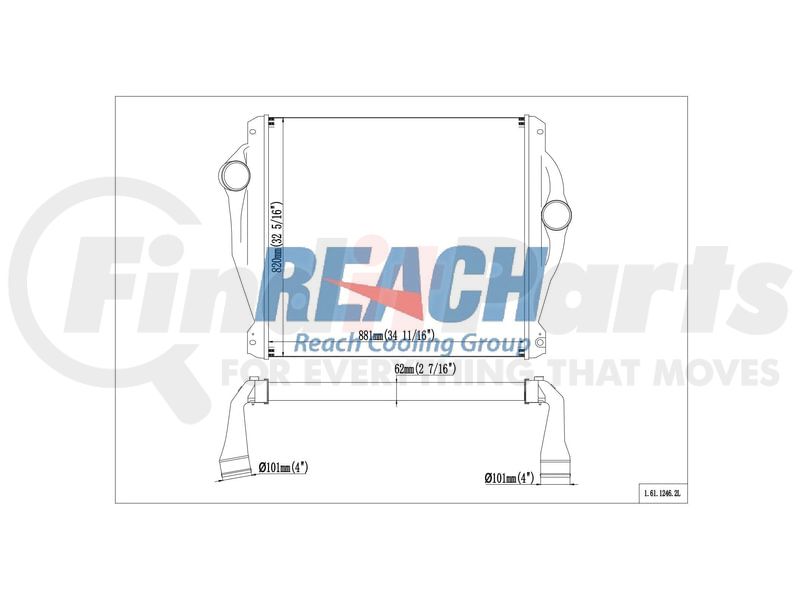

REACH COOLING 61-1246 Specifications
Product Attributes
| Core Thickness | 62 MM |
| Outlet Outside Diameter | 101 MM |
| Core Length | 32.28 IN |
| Inlet Location | Upper Left |
| Outlet Location | Center Right |
| Core Height | 34.69 IN |
| Inlet Outside Diameter | 101 MM |
| Outlet Outside Diameter | 4 IN |
| Core Length | 820 MM |
| Core Thickness | 2.44 IN |
| Inlet Outside Diameter | 4 IN |
| Type | Harmonica-shaped tube |
| Core Height | 881 MM |
| Outlet Location | Center Right |
| Inlet Location | Top Left |
Additional Information
| Country of Origin (Primary) | CN |
| UPC | 06949521796822 |
REACH COOLING 61-1246 Cross References
| Brand | Part Number |
|---|---|
| BHTD3032, RCH611246 | |
| 1-800-Radiator | 2310278 |
| ACTIVE RADIATOR SUPPLY COMPANY | FRT18127, FRT18127ED, FRT18127N, FRT18127R |
| Besuto | BES611246 |
| Cancore Industries | CAC354 |
| Detroit Radiator Corporation | FL6L |
| Fisher | 4401-1719 |
| Freightliner | 131242000, 41004084, A0525301002, A0526614042, A0526614090, A0526615014, A0527743008, BTC1107K, DHTFR3F, 118530001, 2991360, 299136000, 3E0118530001, A0526614044, A0526615010, A0526616017, A0526616018, A0527743010, A0525301006, A0526614092, A0526615012, A0526616020, BT1107K, DHT3F, DURFRDAC3F, 130457000, 131241001, A0526614040, A0526614088, A0526616016, A0526616022, A0527741030, A0527743011, A0527745027, A0527745040, BHTD3032, FRCA006L0TF, FRDAC3F, S19955, 130457002, 3E0118490001, 44FR3F, A0526614048, A0526614050, A0526614052, A0526615020, 01-31241-000, 3E0137530000, A0526614086, A0526614087, A0526614094, A0526615022, A0527745024, FRT18127, FRT18127ED, FRT18127N, 118490001, A0526615008, A0527745046, CA2235, FRT18127R, WSR1107K, 0131241000, 131241000, 131241002, 299136001, 37413F, 3E118491, 44FR5W, 613CA107K, A0526614045, A0526614046, A0526614084, A0527745026, A0527745044, E2638 |
| Frontera | PR9023 |
| Keystone Auto Industries | WSR1107K |
| Klimoto | KLI611246 |
| LKQ | WSR1107K |
| Lynol Cooling Systems | 2400-005 |
| Modine | MOD3E0118490001, MOD3E118491 |
| NORTHERN RADIATOR | 222235, SCSI222235 |
| Navistar | RHT064 |
| OEM | 0131241000, 01-31241-000, 1107K, 118490001, 118530001, 130457000, 130457002, 131241000, 131241001, 131241002, 131242000, 2991360, 222235, 299136000, 299136001, 37413F, 3E0118490001, 3E0118530001, 3E0137530000, 3E118491, 400005, 44011719, 41004084, 441240, 44FR3F, 44FR5W, 613CA107K, A0525301002, A0525301006, A0526614040, A0526614042, A0526614044, A0526614045, A0526614046, A0526614048, A0526614050, A0526614052, A0526614084, A0526614086, A0526614087, A0526614088, A0526614090, A0526614092, A0526614094, A0526615008, A0526615010, A0526615012, A0526615014, A0526615020, A0526615022, A0526616016, A0526616017, A0526616020, A0526616018, A0526616022, A0527741030, A0527743008, A0527743010, A0527743011, A0527745024, A0527745026, A0527745040, A0527745027, A0527745044, A0527745046, BHTD3032, BT1107K, BTC1107K, CA2235, CAC354, DHT3F, DHTFR3F, DURFRDAC3F, E2638, FL6L, FLX010243, FRCA006L0TF, FRDAC3F, FRT18127, FRT18127ED, FRT18127N, FRT18127R, MOD3E0118490001, MOD3E118491, RHT064, POP199551, S19955, SCSI222235, SPI44011719, SRMFR3F, SRMFR5W, SRMFR6L, WSR1107K, 0130457002, 8A003186, BHT9454, 3S118491, BHTD9454, D9454, 0130457000, 0131241002 |
| Paccar Parts | CAC61-1246TRP |
| RADPRO LLC | CAC354 |
| SERCK | SRMFR5W, SRMFR3F |
| SPI | 44011719, 4401-1719, SPI44011719 |
| Serck | FLX010243 |
| Spectra Premium | SPI44011719, 4401-1719, 44011719 |
| Superior Cooling Systems | 222235 |
| THERMAL SOLUTIONS MANUFACTURING | 441240 |
| VISTA PRO | 441240 |
REACH COOLING 61-1246 Fits Vehicles
- Freightliner FLD120SD (2009)
- Western Star 4900EX (2008-2011)
- Western Star 4900SA (2008-2011)
- Western Star 4900FA (2008-2012)
- Freightliner Coronado (2008-2009)
- Freightliner Classic (2008-2009)
- Freightliner Century Class (2008-2011)
- Freightliner Argosy (2008)
- Freightliner Cascadia (2008-2013)
- Freightliner Columbia (2008-2011)
- Freightliner Business Class M2 (2008-2009)
- Freightliner M2 112 (2009)
