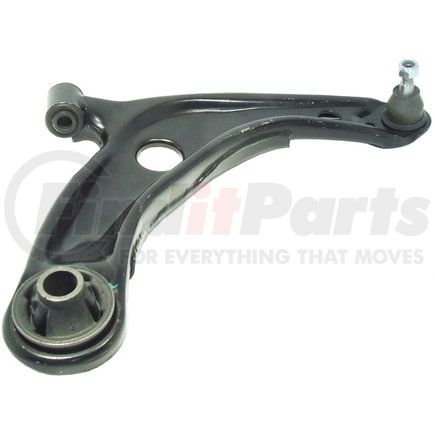

(888) 312-8812 Login SignupDELPHI TC2464 Control Arm and Ball Joint Assembly
Tap to view 2 more
MSRP: $120.29
$9549
Save $24.80
Limited availability at this price!
In Stock
Get it by Wednesday, Feb 11
DELPHI TC2464 Part Description
Manufacturer
Product Description
Control Arm and Ball Joint Assembly
Features & Benefits
- Delphi control arms undergo 100% crack detection and ultrasonic flaw detection to ensure materials match OE specifications
- Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
- Control arms utilize robot welding for consistent performance and quality
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TC2464 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Right Lower |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Ball Joint Mounting Type | Press In |
| Ball Joint Stud Type | Threaded |
| Control Arm Construction | Stamped |
| Control Arm Material | Steel |
| Adjustable | No |
| Greaseable | No |
| Control Arm Maximum Width | 1.748 IN |
| Control Arm Color | Black |
| Ball Joint Thread Diameter | 0.472 IN |
| Ball Joint Thread Diameter | 12.00 MM |
| Ball Joint Stud Length | 0.748 IN |
| Ball Joint Stud Length | 19.00 MM |
| Bushing Material | Rubber |
| Thread Direction | Clockwise (Right) |
| Bushing Color | Black |
| Finish | Painted |
| Bushings Included | Yes |
| Dust Boot Included | Yes |
| Ball Joint Included | Yes |
| Mounting Hardware Included | Yes |
| Grade Type | Premium |
| Boot Material | Chloroprene Rubber (CR) |
| Locking Nut Included | Yes |
| Control Arm Maximum Width | 44.40 MM |
| Thread Diameter | 12.00 MM |
| Boot Color | Black |
| Steering Type | Power |
| Bearing Material | Plastic |
| Dust Boot Material | Chloroprene Rubber (CR) |
| Thread Diameter | 0.472 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Country of Origin (Primary) | TR |
| UPC | 00689604270585 |
| VMRS Code | 016001001 |
| UNSPSC | 25172013 |
DELPHI TC2464 Cross References
| Brand | Part Number |
|---|---|
| Beck/Arnley | 102-5765 |
| CORTECO | 49399901 |
| DORMAN | 521-106, CB74284, CB74284PR |
| MAS Industries | CB60063, CB74284PR |
| MOOG Chassis Products | CK620573, K201307, K201351, K620573, RK620573, 102-5765, K500118 |
| Mevotech | CMS86139 |
| N/A | 48068-59135, 4806809040, 521-106, GS86139, CB74284, 623.44055 |
| TRW | JTC7653 |
| Toyota | 48068-59095, 48068-59145 |
| VAICO | V700092 |
DELPHI TC2464 Fits Vehicles
- Toyota Prius C (2012-2019)
- Scion xD (2008-2014)
- Toyota Yaris (2006-2019)
