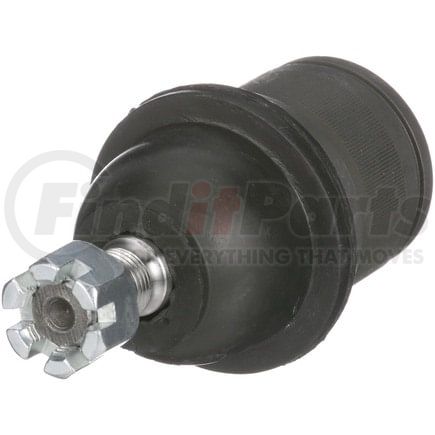

(888) 312-8812 Login SignupDELPHI TC2203 Ball Joint
Tap to view 8 more
MSRP: $80.68
$6449
Save $16.19
Limited availability at this price!
In Stock
Get it by Tuesday, Dec 23
DELPHI TC2203 Part Description
DELPHI TC2203 Specifications
Product Attributes
| Position(s) | Front Lower |
| Item Grade | Standard Replacement |
| Material | Ball Material - Alloy Steel SAE 5140, Housing Material - Carbon Steel SAE 1040 |
| Maximum Outside Diameter | 2.362 IN |
| Maximum Outside Diameter | 60.00 MM |
| Color | Gray |
| Stud Thread Diameter | 16 MM |
| Castle Nut Included | Yes |
| Grease Fitting Included | Yes |
| Suspension Grade Type | Standard |
| Bushings Included | No |
| Dust Boot Included | Yes |
| Ball Joint Assembly | Yes |
| Width | 60 MM |
| Cotter Pin Included | Yes |
| Cotter Pin Hole | Yes |
| Mounting Hardware Included | Yes |
| Washers Included | Yes |
| Height | 4.567 IN |
| Nuts Included | Yes |
| Adjustable | No |
| Stud Thread Length | 1.102 IN |
| Stud Type | Threaded |
| Mounting Type | Press-In |
| Dust Boot Material | Rubber |
| Mounting Bolts Included | No |
| Mount Plate Included | No |
| Tapered Stud | Yes |
| Stud Taper Per Foot | 0.167 IN |
| Stud Tapered End 2 Diameter | 0.705 IN |
| Stud Tapered End 2 Diameter | 17.9 MM |
| Stud Tapered End 1 Diameter | 0.843 IN |
| Stud Tapered End 1 Diameter | 21.4 MM |
| Stud Thread Pitch | 1.5 MM |
| Length | 116.00 MM |
| Length | 4.570 IN |
| Stud Thread Diameter | 0.63 IN |
| Height | 116.00 MM |
| Stud Thread Length | 27.99 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Country of Origin (Primary) | TR |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| UPC | 00689604275122 |
| VMRS Code | 016001015 |
| UNSPSC | 25174203 |
DELPHI TC2203 Part Interchanges
| Brand | Part Number |
|---|---|
| MOOG Chassis Products | CK620477, K7395, RK620477 |
| Mevotech | MK7395 |
| Chrysler | 52106222AA, 52106397AA |
| MAS Industries | B7395, BJ82265, CB81173, CB81173PR |
| TRW | JBJ899 |
| Dorman | 520-305 |
| N/A | 52106 396AA, GK7395, TXK7395 |
DELPHI TC2203 Fits Vehicles
- Dodge Durango (2000-2003)
- Dodge Dakota (2000-2004)
