Position(s)	Front Lower
Item Grade	Standard Replacement
Material	Ball Material - Alloy Steel SAE 5140, Housing Material - Carbon Steel SAE 1040
Maximum Outside Diameter	1.791 IN
Maximum Outside Diameter	45.50 MM
Color	Gray
Stud Thread Diameter	14 MM
Castle Nut Included	No
Grease Fitting Included	No
Suspension Grade Type	Standard
Bushings Included	No
Dust Boot Included	Yes
Ball Joint Assembly	Yes
Width	45.5 MM
Cotter Pin Included	No
Cotter Pin Hole	No
Mounting Hardware Included	Yes
Washers Included	No
Height	3.406 IN
Nuts Included	Yes
Adjustable	No
Greaseable	No
Stud Thread Length	0.886 IN
Stud Type	Threaded
Mounting Type	Press-In
Dust Boot Material	Rubber
Mounting Bolts Included	No
Mount Plate Included	No
Tapered Stud	Yes
Stud Taper Per Foot	0.167 IN
Stud Tapered End 2 Diameter	0.585 IN
Stud Tapered End 2 Diameter	14.85 MM
Stud Tapered End 1 Diameter	0.709 IN
Stud Tapered End 1 Diameter	18 MM
Stud Thread Pitch	1.5 MM
Stud Thread Diameter	0.55 IN
Height	86.51 MM
Stud Thread Length	22.5 MM

Harmonized Tariff Code (HTS)	8708806590
Warranty Special	Limited Lifetime
Warranty Special UOM	LF
Harmonized Tariff Code (Schedule B)	8708807000
Country of Origin (Primary)	TR
UPC	00689604275504
VMRS Code	016001015
UNSPSC	25174203

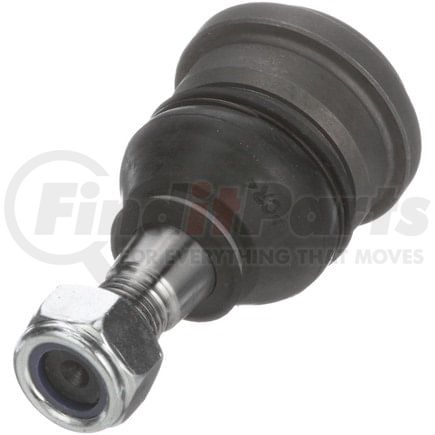

Delphi TC1858 - Ball Joint

Ball Joint
