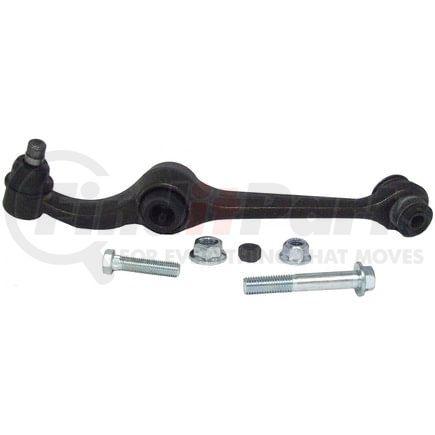

(888) 312-8812 Login SignupDELPHI TC1722 Control Arm and Ball Joint Assembly
$4849
Limited availability at this price!
In Stock
Get as soon as Thursday, Nov 5
DELPHI TC1722 Part Description
Manufacturer
Product Description
Control Arm and Ball Joint Assembly
Features & Benefits
- Delphi control arms undergo 100% crack detection and ultrasonic flaw detection to ensure materials match OE specifications
- Delphi control arms undergo 100% crack detection and ultrasonic flaw detection to ensure materials match OE specfications
- Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
- Control arms utilize robot welding for consistent performance and quality
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TC1722 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Left Lower |
| Control Arm Construction | Casting/Forged |
| Control Arm Material | Steel |
| Mounting Hole Quantity | 1 |
| Adjustable | No |
| Control Arm Maximum Width | 3.937 IN |
| Control Arm Maximum Width | 100.00 MM |
| Control Arm Color | Black |
| Ball Joint Thread Diameter | 17.80 MM |
| Ball Joint Stud Length | 60.00 MM |
| Control Arm Maximum Length | 14.469 IN |
| Control Arm Maximum Length | 367.50 MM |
| Mounting Hole Diameter | 14.20 MM |
| Bushing Material | Rubber |
| Thread Direction | Clockwise (Right) |
| Bushing Color | Black |
| Finish | Painted |
| Pre-Greased | Yes |
| Bushings Included | Yes |
| Dust Boot Included | Yes |
| Ball Joint Included | Yes |
| Grade Type | Premium |
| Boot Material | Chloroprene Rubber (CR) |
| Boot Color | Black |
| Steering Type | Power |
| Dust Boot Material | Chloroprene Rubber (CR) |
| Ball Joint Thread Diameter | 0.701 IN |
| Ball Joint Stud Length | 2.362 IN |
| Mounting Hole Diameter | 0.559 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited |
| Warranty Special UOM | LT |
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Country of Origin (Primary) | TR |
| UPC | 00689604275320 |
| VMRS Code | 016001001 |
| UNSPSC | 25172013 |
DELPHI TC1722 Cross References
DELPHI TC1722 Fits Vehicles
- Ford Windstar (1995-1998)
