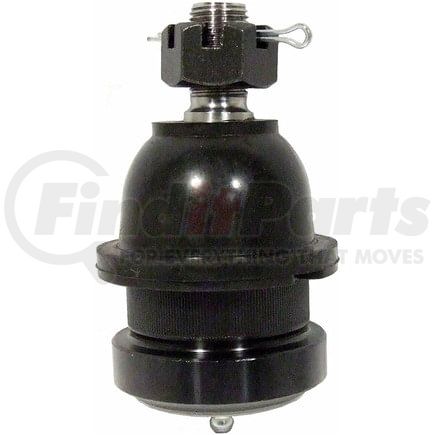

DELPHI TC1694 Part Description
Manufacturer
Product Description
Ball Joint
Features & Benefits
- Delphi ball joints manufactured with high quality forgings for increased strength and smooth operation
- Ball joints utilize chloroprene rubber boots which improves durability, preventing premature failure
- Delphi machines to micron tolerances to guarantee durability and smooth joint operation
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TC1694 Specifications
Product Attributes
| Position(s) | Front Lower |
| Item Grade | Standard Replacement |
| Material | Ball Material - Alloy Steel SAE 5140, Housing Material - Carbon Steel SAE 1040 |
| Maximum Outside Diameter | 2.284 IN |
| Maximum Outside Diameter | 58.00 MM |
| Color | Gray |
| Stud Thread Diameter | 16 MM |
| Castle Nut Included | Yes |
| Grease Fitting Included | Yes |
| Suspension Grade Type | Standard Replacement |
| Bushings Included | No |
| Dust Boot Included | Yes |
| Ball Joint Assembly | Yes |
| Width | 58 MM |
| Cotter Pin Included | Yes |
| Cotter Pin Hole | Yes |
| Mounting Hardware Included | Yes |
| Washers Included | No |
| Height | 4.488 IN |
| Nuts Included | Yes |
| Adjustable | No |
| Greaseable | Yes |
| Stud Thread Length | 1.102 IN |
| Stud Type | Threaded |
| Mounting Type | Press-In |
| Dust Boot Material | Rubber |
| Mounting Bolts Included | No |
| Mount Plate Included | No |
| Tapered Stud | Yes |
| Stud Taper Per Foot | 0.125 IN |
| Stud Tapered End 2 Diameter | 0.72 IN |
| Stud Tapered End 2 Diameter | 18.3 MM |
| Stud Tapered End 1 Diameter | 0.854 IN |
| Stud Tapered End 1 Diameter | 21.7 MM |
| Stud Thread Pitch | 1.5 MM |
| Length | 114.00 MM |
| Length | 4.490 IN |
| Stud Thread Diameter | 0.63 IN |
| Height | 114.00 MM |
| Stud Thread Length | 27.99 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | TR |
| UPC | 00689604275801 |
| VMRS Code | 016001015 |
| UNSPSC | 25174203 |
DELPHI TC1694 Cross References
| Brand | Part Number |
|---|---|
| DORMAN | B8477, B8477PR |
| Dorman | 520-251, 520-261, 520-262 |
| Ford | E9SZ 3050-A, E9SZ-3079A, E9SZ3078A, F1SZ-3078B, F1SZ-3079B, F3LY 3078-A, F3LY 3079-A, F5SZ 3079-A |
| MAS Industries | B8477, CB80053, CB80053PR, CB8783, CB8783PR, CB8784, CB8784PR |
| MOOG Chassis Products | CK80053, CK80055, K8477, RK80053, RK80055, RK8783, RK8784 |
| Mevotech | MK8477, CMK8783, CMK8784 |
| N/A | B8477PR, GK8477 |
| TRW | JBJ1012, JTC1559, JTC1560 |
DELPHI TC1694 Fits Vehicles
- Mercury Cougar (1989-1997)
- Lincoln Mark VIII (1993-1998)
- Ford Thunderbird (1989-1997)
