DELPHI TC1621 Part Description
Manufacturer
Product Description

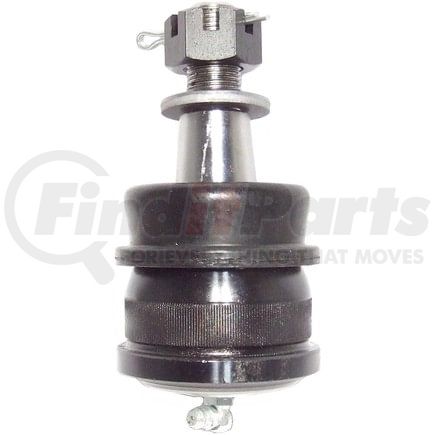

Ball Joint
Features & Benefits
- Delphi ball joints manufactured with high quality forgings for increased strength and smooth operation
- Ball joints utilize chloroprene rubber boots which improves durability, preventing premature failure
- Delphi machines to micron tolerances to guarantee durability and smooth joint operation
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TC1621 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Lower |
| Material | Ball Material - Alloy Steel SAE 5140, Housing Material - Carbon Steel SAE 1040 |
| Maximum Outside Diameter | 2.520 IN |
| Maximum Outside Diameter | 64.00 MM |
| Color | Gray |
| Stud Thread Diameter | 0.688 IN |
| Castle Nut Included | Yes |
| Grease Fitting Included | Yes |
| Suspension Grade Type | Standard Replacement |
| Bushings Included | No |
| Dust Boot Included | Yes |
| Ball Joint Assembly | Yes |
| Width | 64 MM |
| Cotter Pin Included | Yes |
| Cotter Pin Hole | Yes |
| Washers Included | Yes |
| Height | 5.354 IN |
| Height | 124.00 MM |
| Nuts Included | Yes |
| Adjustable | No |
| Greaseable | Yes |
| Stud Thread Length | 1.398 IN |
| Stud Type | Threaded |
| Mounting Type | Press-In |
| Dust Boot Material | Rubber |
| Mounting Bolts Included | No |
| Mount Plate Included | No |
| Tapered Stud | Yes |
| Stud Taper Per Foot | 0.167 IN |
| Stud Tapered End 2 Diameter | 0.878 IN |
| Stud Tapered End 2 Diameter | 22.3 MM |
| Stud Tapered End 1 Diameter | 1.059 IN |
| Stud Tapered End 1 Diameter | 26.9 MM |
| Stud Threads Per Inch | 18 |
| Stud Thread Diameter | 17.48 MM |
| Stud Thread Length | 35.51 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | TR |
| UPC | 00689604277188 |
| VMRS Code | 016001015 |
| UNSPSC | 25174203 |
DELPHI TC1621 Cross References
DELPHI TC1621 Fits Vehicles
- GMC P35/P3500 Van (1971-1974)
- GMC P25/P2500 Van (1971-1974)
- GMC G35/G3500 Van (1971-1974)
- GMC G25/G2500 Van (1971-1972)
- GMC C35/C3500 Pickup (1971-1974)
- GMC C25/C2500 Suburban (1971-1974)
- GMC C25/C2500 Pickup (1971-1974)
- Chevrolet P30 Van (1971-1974)
- Chevrolet P20 Van (1971-1974)
- Chevrolet G20 Van (1971-1972)
- Chevrolet G30 Van (1971-1974)
- Chevrolet C30 Pickup (1971-1974)
- Chevrolet C20 Pickup (1971-1974)
- GMC R3500 (1987-1991)
- GMC R2500 Suburban (1987-1991)
- GMC R2500 (1987-1989)
- GMC P3500 (1979-1999)
- GMC P35 (1975-1978)
- GMC P2500 (1979-1989)
- GMC P25 (1975-1978)
- GMC G3500 (1979-1996)
- GMC G35 (1975-1978)
- GMC C3500 (1979-1986)
- GMC C35 (1975-1978)
- GMC C2500 Suburban (1979-1986)
- GMC C25 Suburban (1975-1978)
- GMC C2500 (1979-1986)
- GMC C25 (1975-1978)
- Chevrolet R3500 (1989-1991)
- Chevrolet R30 (1987-1988)
- Chevrolet R20 Suburban (1987-1988)
- Chevrolet R20 (1987-1988)
- Chevrolet P30 (1975-1999)
- Chevrolet P20 (1975-1989)
- Chevrolet G30 (1975-1996)
- Chevrolet C30 (1975-1986)
- Chevrolet C20 Suburban (1971-1986)
- Chevrolet C20 (1975-1986)
