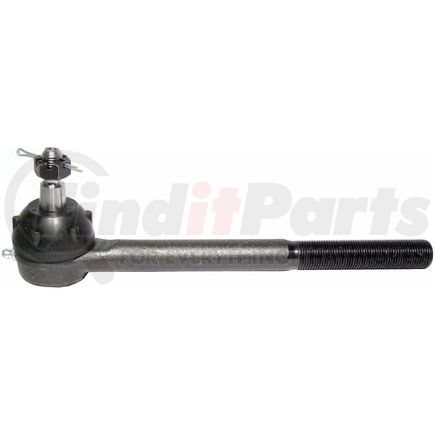

DELPHI TA2300 Part Description
DELPHI TA2300 Specifications
Product Attributes
| Position(s) | Inner |
| Item Grade | Standard Replacement |
| Length | 248.00 MM |
| Color | Gray |
| End 1 Gender | Male |
| End 2 Gender | Male |
| Pre-Greased | Yes |
| Grease Fitting Included | Yes |
| Dust Boot Included | Yes |
| Width | 44.5 MM |
| Type | Straight |
| Mounting Hardware Included | Yes |
| End 2 Thread Diameter | 0.438 IN |
| Height | 79.00 MM |
| Grade Type | Standard |
| Housing Material | Steel |
| Adjustable | No |
| Greaseable | Yes |
| Weight | 1.36 lb |
| Bearing Material | Plastic |
| End 1 Thread Direction | Counterclockwise (Left) |
| End 2 Thread Direction | Clockwise (Right) |
| Grade | Premium |
| Stud Type | Threaded |
| Length - Stud Center to End | 8.484 IN |
| Length - Stud Center to End | 215.50 MM |
| Dust Boot Material | Rubber |
| Tie Rod Material | Steel |
| End 2 Threads Per Inch | 20 |
| End 1 Threads Per Inch | 18 |
| End 1 Thread Diameter | 0.688 IN |
| End 2 Thread Diameter | 11.13 MM |
| End 1 Thread Diameter | 17.48 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708998175 |
| Harmonized Tariff Code (HTS) | 8708998180 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | TR |
| UPC | 00689604275931 |
| VMRS Code | 015004070 |
| UNSPSC | 25174205 |
DELPHI TA2300 Part Interchanges
| Brand | Part Number |
|---|---|
| Beck/Arnley | 101-6862 |
| MOOG Chassis Products | ES3380T |
| Mevotech | MES3380T |
| General Motors | 26054934, 8-26054-934-0 |
| Isuzu | 8-26054-934-0 |
| MAS Industries | T3379, T3380 |
| TRW | JTE1309 |
| N/A | GES3380T, T3380XL |
DELPHI TA2300 Fits Vehicles
- GMC Sonoma (1996-2003)
- GMC Jimmy (1996-2001)
- Chevrolet S10 (1996-2003)
- Chevrolet Blazer (1996-2005)
- Isuzu Hombre (1996-2000)
DELPHI TA2300 Customer Reviews
No reviews yet
Be the first to review this product!
