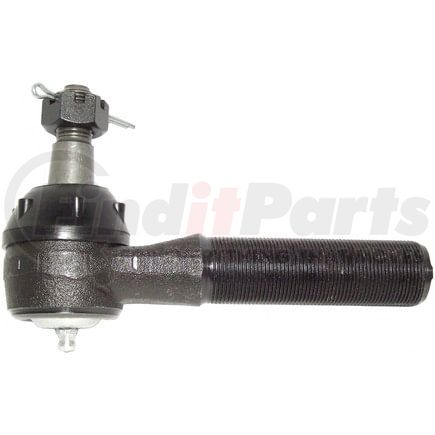

(888) 312-8812 Login SignupDELPHI TA2177 Tie Rod End
MSRP: $57.58
$4599
Save $11.59
Limited availability at this price!
In Stock
Get it by Wednesday, Feb 4
DELPHI TA2177 Part Description
Manufacturer
Product Description
Tie Rod End
Features & Benefits
- Delphi includes the necessary accessories for a complete job
- Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
- Delphi tie rods are fatigue tested to avoid failure
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TA2177 Specifications
Product Attributes
| Position(s) | Left Inner, Left Outer, Left Outer (Steering Arm To Steering Arm). For the position specific to your vehicle, refer to the Applications. |
| Item Grade | Standard Replacement |
| Length | 160.50 MM |
| Color | Gray |
| End 1 Gender | Male |
| End 2 Gender | Male |
| Grease Fitting Included | Yes |
| Dust Boot Included | Yes |
| Width | 44.5 MM |
| Type | Straight |
| Mounting Hardware Included | Yes |
| End 2 Thread Diameter | 14.00 MM |
| Height | 100.00 MM |
| Grade Type | Standard Replacement |
| Housing Material | Steel |
| Adjustable | No |
| Greaseable | Yes |
| Weight | 1.79 lb |
| Bearing Material | Plastic |
| End 1 Thread Direction | Clockwise (Right) |
| End 2 Thread Direction | Clockwise (Right) |
| Grade | Premium |
| Stud Type | Threaded |
| End 2 Thread Pitch | 1.5 MM |
| Dust Boot Material | Rubber |
| Tie Rod Material | Steel |
| End 1 Threads Per Inch | 18 |
| End 1 Thread Diameter | 1.000 IN |
| Pre-Greased | Yes |
| End 1 Thread Diameter | 25.40 MM |
| End 2 Thread Diameter | 0.551 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708998180 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Harmonized Tariff Code (Schedule B) | 8708998175 |
| Country of Origin (Primary) | TR |
| UPC | 00689604277966 |
| VMRS Code | 015004020 |
| UNSPSC | 25174205 |
DELPHI TA2177 Cross References
| Brand | Part Number |
|---|---|
| DORMAN | T3009, T3009PR |
| Ford | E5TZ-3304A, E5TZ-3A131A, E6TZ-3A131A, E7TZ-3304B, F2TZ 3304-B, MDOE13 |
| MAS Industries | T3009, T3009PR |
| MOOG | ES3009R |
| MOOG Chassis Products | ES2392L, ES2615R, ES3009R |
| Mevotech | MES3009R |
| N/A | 531-236, GES3009R, 612.61032 |
| TRW | JTE1295 |
DELPHI TA2177 Fits Vehicles
- Ford F-350 (1985-1997)
DELPHI TA2177 Customer Reviews
No reviews yet
Be the first to review this product!
DELPHI TA2177 Questions & Answers
No questions yet
Be the first to ask a question about this product!
