Position(s)	Front Lower
Item Grade	Standard Replacement
Material	Steel
Maximum Outside Diameter	1.890 IN
Maximum Outside Diameter	48.00 MM
Color	Black
Stud Thread Diameter	0.472 IN
Stud Thread Diameter	12 MM
Castle Nut Included	Yes
Grease Fitting Included	No
Suspension Grade Type	Standard
Bushings Included	No
Dust Boot Included	Yes
Ball Joint Assembly	Yes
Width	83.5 MM
Cotter Pin Included	Yes
Cotter Pin Hole	Yes
Mounting Hardware Included	Yes
Mounting Bolt Length	1.476 IN
Mounting Bolt Length	37.50 MM
Washers Included	No
Height	3.614 IN
Height	91.80 MM
Nuts Included	Yes
Mounting Hole Quantity	3
Adjustable	No
Greaseable	No
Stud Thread Length	0.74 IN
Stud Thread Length	18.8 MM
Wrench Size	19mm
Stud Type	Threaded
Mounting Type	Bolt-In
Distance Between Mounting Holes	23.00 MM
Dust Boot Material	Rubber
Mounting Bolt Shank Diameter	0.472 IN
Mounting Bolt Shank Diameter	12.00 MM
Mounting Bolt Head Diameter	0.866 IN
Mounting Bolt Head Diameter	22.00 MM
Mounting Bolts Included	Yes
Mounting Bolt Thread Pitch	1.75 MM
Mounting Bolt Thread Length	1.181 IN
Mounting Bolt Thread Length	30.00 MM
Mounting Bolt Thread Diameter	12.00 MM
Mount Plate Included	No
Tapered Stud	Yes
Stud Tapered End 2 Diameter	0.728 IN
Stud Tapered End 2 Diameter	18.5 MM
Stud Tapered End 1 Diameter	0.591 IN
Stud Tapered End 1 Diameter	15 MM
Stud Thread Pitch	1.75 MM
Mounting Bolt Thread Diameter	0.470 IN

Harmonized Tariff Code (HTS)	8708806590
Warranty Special	Limited Lifetime
Warranty Special UOM	LF
Harmonized Tariff Code (Schedule B)	8708807000
Country of Origin (Primary)	TR
UPC	00689604254967
VMRS Code	016001015
UNSPSC	25174203

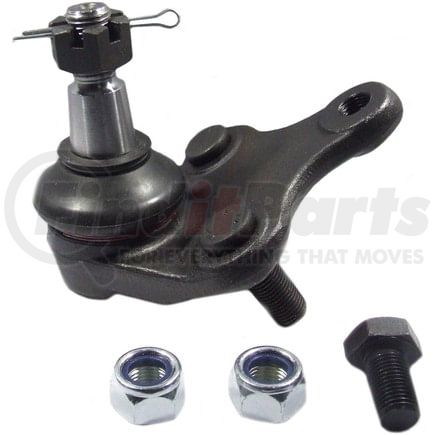

Delphi TC1994 - Ball Joint

Ball Joint
