Position(s)	Front Lower
Item Grade	Standard Replacement
Material	Steel
Maximum Outside Diameter	1.929 IN
Maximum Outside Diameter	49.00 MM
Color	Black
Stud Thread Diameter	0.63 IN
Stud Thread Diameter	16 MM
Castle Nut Included	No
Grease Fitting Included	No
Suspension Grade Type	Standard
Bushings Included	No
Dust Boot Included	Yes
Ball Joint Assembly	Yes
Width	87 MM
Cotter Pin Included	No
Cotter Pin Hole	No
Mounting Hardware Included	Yes
Mounting Bolt Length	1.260 IN
Mounting Bolt Length	32.00 MM
Washers Included	No
Height	3.858 IN
Height	98.00 MM
Nuts Included	Yes
Mounting Hole Quantity	3
Adjustable	No
Stud Thread Length	1.051 IN
Stud Thread Length	26.7 MM
Wrench Size	16mm
Stud Type	Threaded
Mounting Type	Bolt-In
Distance Between Mounting Holes	84.00 MM
Dust Boot Material	Rubber
Mounting Bolt Shank Diameter	0.472 IN
Mounting Bolt Shank Diameter	12.00 MM
Mounting Bolt Head Diameter	1.047 IN
Mounting Bolt Head Diameter	26.60 MM
Mounting Bolts Included	Yes
Mounting Bolt Thread Pitch	1.25 MM
Mounting Bolt Thread Length	0.787 IN
Mounting Bolt Thread Length	20.00 MM
Mounting Bolt Thread Diameter	12.00 MM
Mount Plate Included	No
Tapered Stud	Yes
Stud Tapered End 2 Diameter	0.957 IN
Stud Tapered End 2 Diameter	24.3 MM
Stud Tapered End 1 Diameter	0.809 IN
Stud Tapered End 1 Diameter	20.55 MM
Stud Thread Pitch	1.5 MM
Length	110.00 MM
Length	4.330 IN
Mounting Bolt Thread Diameter	0.470 IN

Harmonized Tariff Code (HTS)	8708806590
Warranty Special	Limited Lifetime
Warranty Special UOM	LF
Harmonized Tariff Code (Schedule B)	8708807000
Country of Origin (Primary)	TR
UPC	00689604275542
VMRS Code	016001015
UNSPSC	25174203

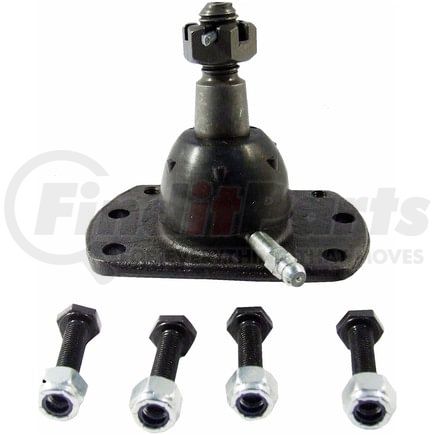

Delphi TC1848 - Ball Joint

Ball Joint
