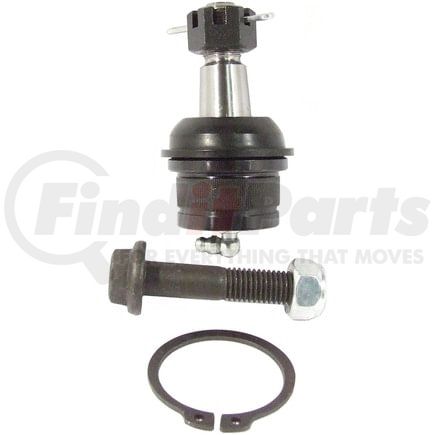

DELPHI TC1703 Ball Joint

★★★★★ (0)

MSRP: $51.15

$31.49

Save $19.66

Limited availability at this price!

In Stock

Get as soon as Wednesday, Nov 25
30-day Return Policy On eligible items Details
Free Ground shipping on orders over $499 details

DELPHI TC1703 Part Description

Manufacturer

DELPHI

Product Description

Ball Joint

Features & Benefits

  • Delphi ball joints manufactured with high quality forgings for increased strength and smooth operation
  • Ball joints utilize chloroprene rubber boots which improves durability, preventing premature failure
  • Delphi machines to micron tolerances to guarantee durability and smooth joint operation
  • Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics

DELPHI TC1703 Specifications

Product Attributes

Position(s)Front Lower
Item GradeStandard Replacement
MaterialSteel
Maximum Outside Diameter2.126 IN
Maximum Outside Diameter54.00 MM
ColorGray
Stud Thread Diameter0.625 IN
Stud Thread Diameter15.8 MM
Castle Nut IncludedYes
Grease Fitting IncludedYes
Suspension Grade TypeStandard Replacement
Bushings IncludedNo
Dust Boot IncludedYes
Ball Joint AssemblyYes
Width54 MM
Cotter Pin IncludedYes
Cotter Pin HoleYes
Mounting Hardware IncludedYes
Mounting Bolt Length2.815 IN
Mounting Bolt Length71.50 MM
Washers IncludedNo
Height3.937 IN
Height100.00 MM
Nuts IncludedYes
Mounting Hole Quantity0
AdjustableNo
GreaseableYes
Stud Thread Length0.807 IN
Stud Thread Length20.5 MM
Wrench Size17mm
Stud TypeThreaded
Dust Boot MaterialRubber
Mounting Bolt Shank Diameter0.472 IN
Mounting Bolt Shank Diameter12.00 MM
Mounting Bolt Head Diameter1.024 IN
Mounting Bolt Head Diameter26.00 MM
Mounting Bolts IncludedYes
Mounting Bolt Thread Pitch1.75 MM
Mounting Bolt Thread Length1.260 IN
Mounting Bolt Thread Length32.00 MM
Mounting Bolt Thread Diameter12.00 MM
Mount Plate IncludedNo
Tapered StudYes
Stud Tapered End 2 Diameter0.827 IN
Stud Tapered End 2 Diameter21 MM
Stud Tapered End 1 Diameter0.72 IN
Stud Tapered End 1 Diameter18.3 MM
Stud Threads Per Inch18
Stud Thread Pitch0.7 MM
Length54.00 MM
Length2.130 IN
Mounting Bolt Thread Diameter0.470 IN

Additional Information

Harmonized Tariff Code (Schedule B)8708807000
Harmonized Tariff Code (HTS)8708806590
Warranty SpecialLimited
Warranty Special UOMLT
Country of Origin (Primary)TR
UPC00689604275757
VMRS Code016001015
UNSPSC25174203

DELPHI TC1703 Cross References

BrandPart Number
Beck/Arnley101-5199
DORMAN531-447
Dorman531-396, B8673, B8673PR, BJ86385, BJ86385XL
FordF0TZ3050A, ZZL0-34-550, ZZM1-33-051, ZZMM133051
MAS IndustriesB8673
MEVOTECHMK8561T
MOOG Chassis ProductsK8561T, K8563, K8673, 101-5199, K8413T
MazdaZZL0-34-550, ZZM1-33-051
MevotechMK8673
N/AJBJ7027, GK8673, 602.62119, 611.65011

DELPHI TC1703 Fits Vehicles

  • Ford Explorer (1993-1994)
  • Ford Ranger (1993-1997)
  • Mazda B2300 (1995-1996)
  • Mazda B3000 (1994-1996)
  • Mazda B4000 (1994-1997)
  • Mazda Navajo (1993-1994)
