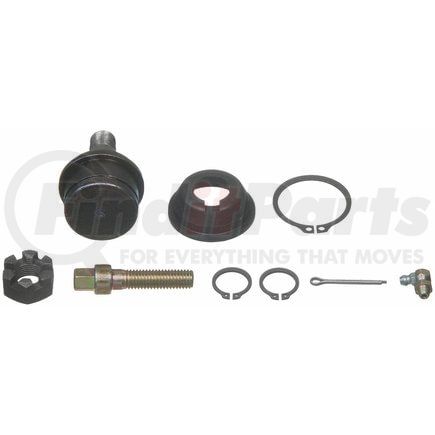

(888) 312-8812 Login SignupMOOG K8563 Suspension Ball Joint
Tap to view 5 more
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
MOOG K8563 Part Description
Manufacturer
Product Description
Suspension Ball Joint
Application Summary
1990 Ford Bronco II (Front Lower) (Drive: 4WD / Qualifier: with Dana 35 Axle, Pinch Bolt Stud Design); 1991-1993 Ford Explorer (Front Lower) (Drive: 4WD / Qualifier: with Dana 35 Axle, Pinch Bolt Stud Design, Thru 1/10/93); 1990-1993 Ford Ranger (Front Lower) (Drive: 4WD / Qualifier: with Dana 35 Axle, Pinch Bolt Stud Design, Thru 1/10/93); 1991-1993 Mazda Navajo (Front Lower) (Drive: 4WD / Qualifier: Pinch Bolt Stud Design, Thru 1/10/93)
Features & Benefits
- Designed for OE fit and function
- Premium boot keeps out contaminants
- Replacement helps restore vehicle handling
- Heavy duty gauge steel construction for strength and durability
MOOG® ball joints provide long-lasting dependability and performance.
MOOG® Problem Solver® products incorporate proven design and engineering features for like new steering, ease of installation and longer life. MOOG is the preferred steering and suspension brand of professional technicians and NASCAR crew chiefs.
- Hardened ball stud made of OE equivalent or better materials to withstand higher loads
- Patent pending dust boot with encapsulated Belleville washer help control axial and radial movement out of box
- Powdered metal gusher bearing design enables grease to flow through bearing to stud for reduced friction and enhanced strength
- Premium forged housing with an increased cross section of up to 52% more material in key areas
- Larger grease reservoir and easy-to-install pre-tapped grease fitting hole for improved maintenance
- Greaseable socket reduces corrosion and wear by allowing new lubricant to flush contaminants
MOOG K8563 Specifications
Product Attributes
| Material | Neoprene |
| Maximum Outside Diameter | 1.870 IN |
| Castle Nut Included | Yes |
| Suspension Grade Type | Standard |
| Cotter Pin Hole | Yes |
| Mounting Hole Quantity | 0 |
| Adjustable | No |
| Greaseable | Yes |
| Mounting Type | Press-In |
Additional Information
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (Schedule B) | 8708806590 |
| Harmonized Tariff Code (HTS) | 8708806590 |
| UPC | 00080066588490 |
| UNSPSC | 25174203 |
MOOG K8563 Cross References
| Brand | Part Number |
|---|---|
| 080066196657 | |
| ACDelco | 45D2145, 46D2145A |
| DELPHI | TC1703, TC1665 |
| DORMAN | B8673, B8563, B8563PR, B8673PR |
| Dorman | 531-447, 539-287 |
| Euclid | E-6255-TU, E6255 |
| Falcon Steering Systems | K8563 |
| Firestone | K8563 |
| Ford | FOTZ-3050A, F0TZ-3050A, E3TZ-3050A |
| MAS Industries | B8563 |
| Mazda | ZZM1-33-051, ZZL034550 |
| Mcquay-Norris | FA1697E, FA1697 |
| Mevotech | MK8563 |
| NAPA | 104376, 260-1328 |
| Perfect Circle | 260-1328, 260-1328FT |
| Raybestos Brakes | 505-1145 |
| SKF | VKDS4749 |
| SUSPENSIA | X15BJ0608 |
| Sealed Power | 801-31158 |
| TRW | 10376 |
| TRW Steering and Suspension Parts | 10376, PS4451 |
MOOG K8563 Fits Vehicles
- Mazda Navajo (1991-1993)
- Ford Ranger (1990-1993)
- Ford Explorer (1991-1993)
- Ford Bronco II (1990)
MOOG K8563 Customer Reviews
No reviews yet
Be the first to review this product!
MOOG K8563 Manufacturer Information
For over 100 years, Moog® has been an industry leader in mid- to high-end aftermarket parts for steering, suspension, and driveline systems worldwide. Utilized by daily commuters to entire fleets, Moog parts have become synonymous with reliable performance that’s just as good or even better than their OE counterparts. Moog also incorporates innovative features in their products not found in competing products, such as patented forged steel bodies and metal “gusher” bearings that greatly reduce friction across moving components. The brand also leads the way in after-sales support, with comprehensive technical assistance and training materials available for customers around the world.
MOOG K8563 Questions & Answers
No questions yet
Be the first to ask a question about this product!
