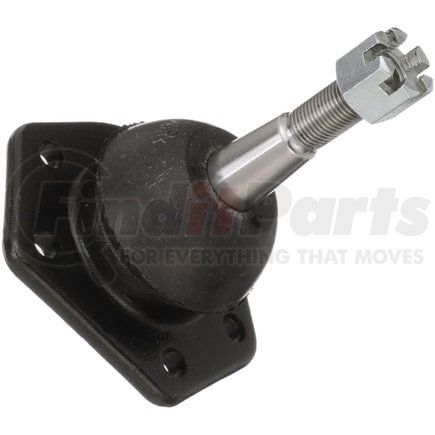

DELPHI TC1613 Part Description
Manufacturer
Product Description
Ball Joint
Features & Benefits
- Delphi ball joints manufactured with high quality forgings for increased strength and smooth operation
- Ball joints utilize chloroprene rubber boots which improves durability, preventing premature failure
- Delphi machines to micron tolerances to guarantee durability and smooth joint operation
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TC1613 Specifications
Product Attributes
| Position(s) | Front Upper |
| Item Grade | Standard Replacement |
| Material | Steel |
| Maximum Outside Diameter | 1.961 IN |
| Maximum Outside Diameter | 49.80 MM |
| Color | Black |
| Stud Thread Diameter | 0.5 IN |
| Stud Thread Diameter | 12.7 MM |
| Castle Nut Included | Yes |
| Grease Fitting Included | Yes |
| Suspension Grade Type | Standard Replacement |
| Bushings Included | No |
| Dust Boot Included | Yes |
| Ball Joint Assembly | Yes |
| Width | 76 MM |
| Cotter Pin Included | Yes |
| Cotter Pin Hole | Yes |
| Mounting Hardware Included | Yes |
| Mounting Bolt Length | 1.220 IN |
| Mounting Bolt Length | 31.00 MM |
| Washers Included | No |
| Height | 4.807 IN |
| Height | 122.10 MM |
| Nuts Included | Yes |
| Mounting Hole Quantity | 4 |
| Adjustable | No |
| Greaseable | Yes |
| Stud Thread Length | 1.122 IN |
| Stud Thread Length | 28.5 MM |
| Wrench Size | 13mm |
| Stud Type | Threaded |
| Distance Between Mounting Holes | 48.00 MM |
| Dust Boot Material | Rubber |
| Mounting Bolt Shank Diameter | 0.313 IN |
| Mounting Bolt Shank Diameter | 7.90 MM |
| Mounting Bolt Head Diameter | 0.571 IN |
| Mounting Bolt Head Diameter | 14.50 MM |
| Mounting Bolts Included | Yes |
| Mounting Bolt Threads Per Inch | 24 |
| Mounting Bolt Thread Length | 0.906 IN |
| Mounting Bolt Thread Length | 23.00 MM |
| Mounting Bolt Thread Diameter | 7.90 MM |
| Mount Plate Included | No |
| Tapered Stud | Yes |
| Stud Tapered End 2 Diameter | 0.701 IN |
| Stud Tapered End 2 Diameter | 17.8 MM |
| Stud Tapered End 1 Diameter | 0.563 IN |
| Stud Tapered End 1 Diameter | 14.3 MM |
| Stud Threads Per Inch | 20 |
| Length | 94.00 MM |
| Length | 3.700 IN |
| Mounting Bolt Thread Diameter | 0.310 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | TR |
| UPC | 00689604278529 |
| VMRS Code | 016001014 |
| UNSPSC | 25174203 |
DELPHI TC1613 Cross References
DELPHI TC1613 Fits Vehicles
- GMC P15/P1500 Van (1973-1974)
- GMC G25/G2500 Van (1973-1974)
- GMC G15/G1500 Van (1973-1974)
- GMC C15/C1500 Suburban (1973-1974)
- GMC C15/C1500 Pickup (1973-1974)
- Chevrolet P10 Van (1973-1974)
- Chevrolet G20 Van (1973-1974)
- Chevrolet G10 Van (1973-1974)
- Chevrolet C10 Pickup (1973-1974)
- Chevrolet Blazer (1973-1974)
- GMC R1500 Suburban (1987-1991)
- GMC R1500 (1987)
- GMC P1500 (1979-1980)
- GMC P15 (1975-1978)
- GMC Jimmy (1973-1982)
- GMC G25 (1975-1978)
- GMC G15 (1975-1978)
- GMC C1500 Suburban (1979-1986)
- GMC C15 Suburban (1975-1978)
- GMC C1500 (1979-1986)
- GMC C15 (1975-1978)
- Chevrolet R1500 Suburban (1989-1991)
- Chevrolet R10 Suburban (1987-1988)
- Chevrolet R10 (1987)
- Chevrolet P10 (1975-1980)
- Chevrolet C10 Suburban (1973-1986)
- Chevrolet C10 (1975-1986)
- Chevrolet K5 Blazer (1975-1982)
- GMC G2500 (1979-1995)
- GMC G1500 (1979-1995)
- Chevrolet G20 (1975-1995)
- Chevrolet G10 (1975-1995)
