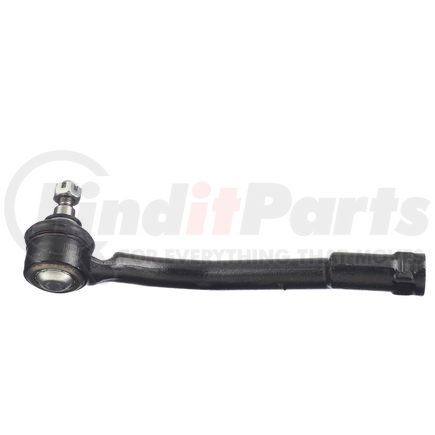

(888) 312-8812 Login SignupDELPHI TA3182 Tie Rod End
Tap to view 6 more
MSRP: $36.12
$2749
Save $8.63
Limited availability at this price!
In Stock
Get it by Thursday, Dec 18
DELPHI TA3182 Part Description
DELPHI TA3182 Specifications
Product Attributes
| Position(s) | Left Outer |
| Item Grade | Standard Replacement |
| Color | Black |
| End 2 Gender | Female |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Dust Boot Included | Yes |
| Width | 67.1 MM |
| Type | Bent |
| Mounting Hardware Included | Yes |
| End 2 Thread Diameter | 0.630 IN |
| End 2 Thread Diameter | 16.00 MM |
| Height | 75.00 MM |
| Housing Material | Steel |
| Tube Diameter | 0.906 IN |
| Tube Diameter | 23.00 MM |
| Adjustable | No |
| Greaseable | No |
| Weight | 1.94 lb |
| Cone Outside Diameter | 15.00 MM |
| Bearing Material | Plastic |
| End 1 Thread Direction | Clockwise (Right) |
| End 2 Thread Direction | Clockwise (Right) |
| Stud Type | Threaded |
| End 2 Thread Pitch | 1.5 MM |
| Length - Stud Center to End | 8.819 IN |
| Length - Stud Center to End | 224.00 MM |
| Dust Boot Material | Rubber |
| Tie Rod Material | Steel |
| End 1 Thread Diameter | 0.394 IN |
| End 1 Thread Diameter | 10.00 MM |
| Shank Length | 15.00 MM |
| Stud Length | 15.00 MM |
| Grade Type | Standard |
| Grade | Premium |
| Shank Length | 0.591 IN |
| Stud Length | 0.591 IN |
| Cone Outside Diameter | 0.591 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708998180 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Harmonized Tariff Code (Schedule B) | 8708998175 |
| Country of Origin (Primary) | TR |
| UPC | 00689604272992 |
| VMRS Code | 015004020 |
| UNSPSC | 25174205 |
DELPHI TA3182 Part Interchanges
| Brand | Part Number |
|---|---|
| Beck/Arnley | 101-7838 |
| MOOG Chassis Products | ES801144 |
| Mevotech | MS90637 |
| Hyundai | 56820-2W000 |
| MAS Industries | TO60221 |
| N/A | 56820-4Z000, ES801263, 101-8161 |
DELPHI TA3182 Fits Vehicles
- Hyundai Santa Fe Sport (2013-2018)
- Hyundai Santa Fe XL (2013-2019)
- Hyundai Santa Fe (2013-2018)
