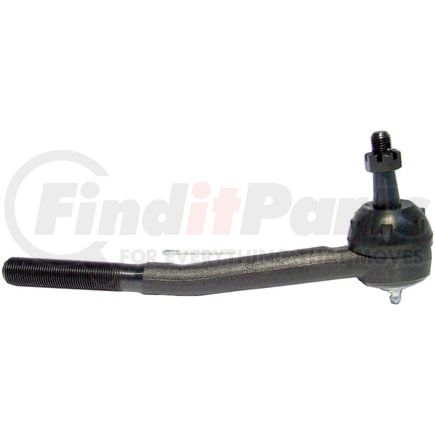

DELPHI TA2131 Tie Rod End

★★★★★ (0)

MSRP: $29.11

$18.49

Save $10.62

Limited availability at this price!

In Stock

Get as soon as Monday, Nov 30
30-day Return Policy On eligible items Details
Free Ground shipping on orders over $499 details
Orders placed over the weekend will be processed the next business day.

DELPHI TA2131 Part Description

Manufacturer

DELPHI

Product Description

Tie Rod End

Features & Benefits

  • Delphi includes the necessary accessories for a complete job
  • Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
  • Delphi tie rods are fatigue tested to avoid failure
  • Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics

DELPHI TA2131 Specifications

Product Attributes

Position(s)Outer
Item GradeStandard Replacement
ColorGray
End 1 GenderMale
End 2 GenderMale
Pre-GreasedYes
Dust Boot IncludedYes
Width43 MM
TypeBent
Mounting Hardware IncludedYes
End 2 Thread Diameter0.687 IN
End 2 Thread Diameter17.46 MM
Height92.30 MM
Housing MaterialSteel
Tube Diameter0.748 IN
Tube Diameter19.00 MM
AdjustableNo
Weight1.23 lb
Cone Outside Diameter15.90 MM
Bearing MaterialPlastic
End 1 Thread DirectionClockwise (Right)
End 2 Thread DirectionClockwise (Right)
Stud TypeThreaded
Length - Stud Center to End8.858 IN
Length - Stud Center to End225.00 MM
Dust Boot MaterialRubber
Tie Rod MaterialSteel
End 2 Threads Per Inch18
End 1 Threads Per Inch20
End 1 Thread Diameter0.437 IN
End 1 Thread Diameter11.11 MM
Shank Length15.90 MM
Stud Length15.90 MM
Grade TypeStandard Replacement
GradePremium
Shank Length0.626 IN
Stud Length0.626 IN
Cone Outside Diameter0.626 IN

Additional Information

Harmonized Tariff Code (Schedule B)8708998175
Country of Origin (Primary)TR
Harmonized Tariff Code (HTS)8708998180
Warranty SpecialLimited
Warranty Special UOMLT
UPC00689604278765
VMRS Code015004045
UNSPSC25174205

DELPHI TA2131 Cross References

BrandPart Number
DORMANT2019, T2019XL
General Motors12308612, 26056100, 7826713, 7826838, 7834222, 7834236
MAS IndustriesT2019, 534-273
MOOGES2019RLT
MOOG Chassis ProductsES2019RLT
MevotechMES2019RLT
N/AGES2019RLT, T2019XL, 613.62002, MES2105RL
TRWJTE1226

DELPHI TA2131 Fits Vehicles

  • Buick Commercial Chassis (1991-1996)
  • Buick Electra (1977-1989)
  • Buick Estate Wagon (1977-1983)
  • Buick LeSabre (1977-1990)
  • Buick Riviera (1977-1978)
  • Buick Roadmaster (1991-1996)
  • Cadillac Brougham (1987-1992)
  • Cadillac Commercial Chassis (1992-1996)
  • Cadillac DeVille (1977-1984)
  • Cadillac Fleetwood (1977-1986, 1993-1996)
  • Chevrolet Astro (1985-2005)
  • Chevrolet Bel Air (1981)
  • Chevrolet Caprice (1977-1996)
  • Chevrolet Commercial Chassis (1991-1994)
  • Chevrolet Impala (1977-1985, 1994-1996)
  • GMC Safari (1985-2005)
  • Oldsmobile 98 (1977-1984)
  • Oldsmobile Custom Cruiser (1977-1992)
  • Oldsmobile Delta 88 (1977-1985)
  • Pontiac Bonneville (1977-1981)
  • Pontiac Catalina (1977-1981)
  • Pontiac Grand Safari (1977-1978)
  • Pontiac Parisienne (1977-1986)
  • Pontiac Safari (1987-1989)
