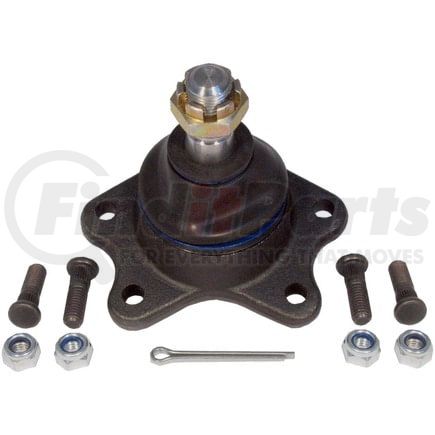

DELPHI TC660 Part Description
DELPHI TC660 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Upper |
| Material | Steel |
| Maximum Outside Diameter | 4.055 IN |
| Maximum Outside Diameter | 103.00 MM |
| Color | Gray |
| Stud Thread Diameter | 0.63 IN |
| Stud Thread Diameter | 16 MM |
| Castle Nut Included | Yes |
| Grease Fitting Included | No |
| Suspension Grade Type | Standard |
| Bushings Included | No |
| Dust Boot Included | Yes |
| Ball Joint Assembly | Yes |
| Width | 77.5 MM |
| Cotter Pin Included | Yes |
| Cotter Pin Hole | Yes |
| Mounting Hardware Included | Yes |
| Mounting Bolt Length | 1.102 IN |
| Mounting Bolt Length | 28.00 MM |
| Washers Included | No |
| Height | 3.941 IN |
| Height | 100.10 MM |
| Nuts Included | Yes |
| Mounting Hole Quantity | 4 |
| Adjustable | No |
| Greaseable | No |
| Stud Thread Length | 1.024 IN |
| Stud Thread Length | 26 MM |
| Wrench Size | 24mm |
| Stud Type | Threaded |
| Mounting Type | Bolt-In |
| Distance Between Mounting Holes | 35.00 MM |
| Dust Boot Material | Rubber |
| Mounting Bolt Shank Diameter | 0.315 IN |
| Mounting Bolt Shank Diameter | 8.00 MM |
| Mounting Bolt Head Diameter | 0.496 IN |
| Mounting Bolt Head Diameter | 12.60 MM |
| Mounting Bolts Included | Yes |
| Mounting Bolt Thread Pitch | 1.25 MM |
| Mounting Bolt Thread Length | 0.591 IN |
| Mounting Bolt Thread Length | 15.00 MM |
| Mounting Bolt Thread Diameter | 8.00 MM |
| Mount Plate Included | No |
| Tapered Stud | Yes |
| Stud Tapered End 2 Diameter | 0.748 IN |
| Stud Tapered End 2 Diameter | 19 MM |
| Stud Tapered End 1 Diameter | 0.659 IN |
| Stud Tapered End 1 Diameter | 16.75 MM |
| Stud Thread Pitch | 1.5 MM |
| Length | 3.050 IN |
| Length | 77.47 MM |
| Mounting Bolt Thread Diameter | 0.310 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Country of Origin (Primary) | TR |
| UPC | 00689604259924 |
| VMRS Code | 016001014 |
| UNSPSC | 25174203 |
DELPHI TC660 Part Interchanges
| Brand | Part Number |
|---|---|
| Beck/Arnley | 101-4149 |
| MOOG Chassis Products | K9482 |
| Mevotech | MK9482 |
| Toyota | 43350-29085, 43350-39045, 43350-39085, 43360-39085, J4335039085 |
| Volkswagen | J4335039085 |
| MAS Industries | B9482, BJ74056 |
| TRW | JBJ456 |
| Import Direct | BJ07003 |
| N/A | 4335039017, J4336039085, GK9482 |
DELPHI TC660 Fits Vehicles
- Toyota T100 (1993-1998)
- Toyota Pickup (1986-1995)
- Toyota 4Runner (1986-1996)
