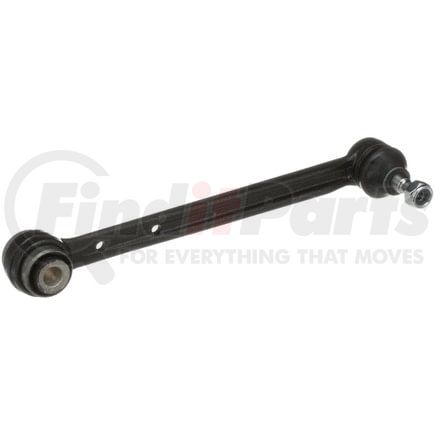

(888) 312-8812 Login SignupDELPHI TC389 Control Arm and Ball Joint Assembly
Tap to view 17 more
MSRP: $45.40
$4099
Save $4.41
Limited availability at this price!
In Stock
Get it by Thursday, Jun 18
DELPHI TC389 Part Description
Manufacturer
Product Description
Control Arm and Ball Joint Assembly
Features & Benefits
- Delphi control arms undergo 100% crack detection and ultrasonic flaw detection to ensure materials match OE specifications
- Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
- Control arms utilize robot welding for consistent performance and quality
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TC389 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Rear Lower, Rear Lower Rearward. For the position specific to your vehicle, refer to the Applications. |
| Grease Fitting Included | No |
| Bushings Included | Yes |
| Ball Joint Stud Type | Threaded |
| Control Arm Construction | Casting/Forged |
| Control Arm Material | Steel |
| Mounting Hardware Included | Yes |
| Mounting Hole Quantity | 1 |
| Adjustable | No |
| Greaseable | No |
| Control Arm Color | Black |
| Ball Joint Thread Diameter | 0.394 IN |
| Ball Joint Thread Diameter | 10.00 MM |
| Ball Joint Stud Length | 0.661 IN |
| Mounting Hole Diameter | 12.20 MM |
| Bushing Material | Rubber |
| Thread Direction | Clockwise (Right) |
| Bushing Color | Black |
| Finish | Painted |
| Pre-Greased | Yes |
| Dust Boot Included | Yes |
| Ball Joint Included | Yes |
| Grade Type | Premium |
| Boot Material | Chloroprene Rubber (CR) |
| Locking Nut Included | Yes |
| Ball Joint Stud Length | 16.79 MM |
| Thread Diameter | 10.00 MM |
| Boot Color | Black |
| Steering Type | Power |
| Bearing Material | Plastic |
| Dust Boot Material | Chloroprene Rubber (CR) |
| Thread Diameter | 0.394 IN |
| Mounting Hole Diameter | 0.480 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Country of Origin (Primary) | TR |
| UPC | 00689604259344 |
| VMRS Code | 016008142 |
| UNSPSC | 25172013 |
DELPHI TC389 Cross References
| Brand | Part Number |
|---|---|
| CORTECO | 49398571, 49398875 |
| DORMAN | 522-108, CB28510, 522-107, CB28510PR, 534-549 |
| Deeza | MB-H227 |
| Import Direct | ER14012 |
| MAS Industries | CB28510 |
| MEVOTECH | CMS101019 |
| MEYLE | 0160396300, 0160396301 |
| MOOG | RK620151, ES3327 |
| MOOG Chassis Products | CK620534, ES3327, K620534, RK620534 |
| Mercedes-Benz | 124 350 0153, 201 350 18 53, 201 350 2953, 201 350 3253, 210 350 0653, 210 350 09 53, 210 350 1853, 210 350 21 53, 210 350 2753, A124 350 0153, A201 350 1853, A201 350 2953, A201 350 3253, A210 350 0653, A210 350 0953, A210 350 1853, A210 350 2153, A210 350 2753 |
| Mevotech | MS101019 |
| N/A | CMS101019, 52-2107, GS101019, 624.35016, MES3327 |
| TRW | JTC923 |
| VAICO | V307156, V30-7252 |
DELPHI TC389 Fits Vehicles
- Mercedes-Benz SLK320 (2001-2004)
- Mercedes-Benz SLK32 AMG (2002-2004)
- Mercedes-Benz SLK230 (1998-2004)
- Mercedes-Benz SL600 (1994-2002)
- Mercedes-Benz SL500 (1994-2002)
- Mercedes-Benz SL320 (1994-1997)
- Mercedes-Benz E55 AMG (1999-2002)
- Mercedes-Benz E500 (1994)
- Mercedes-Benz E430 (1998-2002)
- Mercedes-Benz E420 (1994-1995)
- Mercedes-Benz E320 (1994-2002)
- Mercedes-Benz E300 (1995-1999)
- Mercedes-Benz CLK55 AMG (2002)
- Mercedes-Benz CLK430 (1999-2003)
- Mercedes-Benz CLK320 (1998-2003)
- Mercedes-Benz C36 AMG (1995-1997)
- Mercedes-Benz C280 (1994-2000)
- Mercedes-Benz C230 (1997-2000)
- Mercedes-Benz C220 (1994-1996)
- Mercedes-Benz 300TE (1988-1993)
- Mercedes-Benz 300E (1986-1993)
- Mercedes-Benz 300D (1990-1993)
- Mercedes-Benz 260E (1987-1989)
- Mercedes-Benz 190E (1984-1989, 1991-1993)
- Mercedes-Benz 190D (1984-1989)
