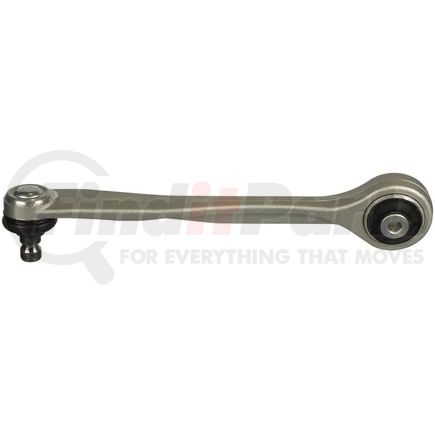

(888) 312-8812 Login SignupDELPHI TC2972 Control Arm and Ball Joint Assembly
Tap to view 2 more
MSRP: $62.17
$5749
Save $4.68
Limited availability at this price!
In Stock
Get it by Thursday, Jul 16
DELPHI TC2972 Part Description
Manufacturer
Product Description
Control Arm and Ball Joint Assembly
Features & Benefits
- Delphi control arms undergo 100% crack detection and ultrasonic flaw detection to ensure materials match OE specifications
- Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
- Control arms utilize robot welding for consistent performance and quality
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TC2972 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Left Upper Forward, Front Left Upper Rearward. For the position specific to your vehicle, refer to the Applications. |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Bushings Included | Yes |
| Ball Joint Stud Type | Grooved |
| Control Arm Construction | Casting/Forged |
| Control Arm Material | Aluminum |
| Mounting Hardware Included | No |
| Mounting Hole Quantity | 1 |
| Adjustable | No |
| Greaseable | No |
| Control Arm Maximum Width | 1.575 IN |
| Control Arm Maximum Width | 40.00 MM |
| Control Arm Color | Gray |
| Ball Joint Thread Diameter | 16.0 MM |
| Ball Joint Stud Length | 42.00 MM |
| Control Arm Maximum Length | 12.598 IN |
| Control Arm Maximum Length | 320.00 MM |
| Mounting Hole Diameter | 10.20 MM |
| Bushing Material | Rubber |
| Bushing Color | Black |
| Finish | Uncoated |
| Dust Boot Included | Yes |
| Ball Joint Included | Yes |
| Grade Type | Premium |
| Boot Material | Chloroprene Rubber (CR) |
| Boot Color | Black |
| Steering Type | Power |
| Bearing Material | Plastic |
| Dust Boot Material | Chloroprene Rubber (CR) |
| Ball Joint Stud Length | 1.654 IN |
| Mounting Hole Diameter | 0.402 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Country of Origin (Primary) | TR |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| UPC | 00689604259092 |
| VMRS Code | 016001002 |
| UNSPSC | 25172013 |
DELPHI TC2972 Cross References
| Brand | Part Number |
|---|---|
| Audi | 8K0 407 505 B, 8K0 407 505 M, 8K0 407 505 R, 8K0407505P |
| Beck/Arnley | 102-7512 |
| CORTECO | 49395508 |
| DORMAN | CB12137, CB12087, 521-349, CB12087PR, CB12137PR, 524-509 |
| Dorman | 522-111 |
| MAS Industries | CB12067, CB12087, CB12087PR |
| MEVOTECH | CMS101319 |
| MEYLE | 1160500168/HD |
| MOOG Chassis Products | CK621125, K621125, RK621002, RK621125 |
| Mevotech | CMS70141 |
| N/A | GS70141, CMS101319 |
| Porsche | 8K0 407 505 B, 8K0407505P |
| TRW | JTC1286 |
| VAICO | V10-2316-1, V105343 |
DELPHI TC2972 Fits Vehicles
- Porsche Macan (2015-2021)
- Audi A4 allroad (2013-2016)
- Audi allroad (2013-2016)
- Audi A6 (2014, 2016-2018)
- Audi RS7 (2014-2018)
- Audi S6 (2013-2018)
- Audi S7 (2013-2014, 2016-2018)
- Audi A6 Quattro (2012-2014, 2016-2018)
- Audi A7 Quattro (2012-2014, 2016-2018)
- Audi A5 (2010-2011)
- Audi S5 (2010-2012)
- Audi A5 Quattro (2010-2011)
- Audi Q5 (2009-2012)
