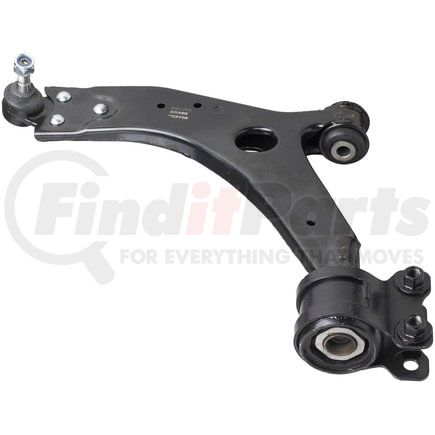

(888) 312-8812 Login SignupDELPHI TC2108 Control Arm and Ball Joint Assembly
Tap to view 2 more
$13449
Limited availability at this price!
5 Day Lead Time
Get it by Tuesday, Jun 23
DELPHI TC2108 Part Description
Manufacturer
Product Description
Control Arm and Ball Joint Assembly
Features & Benefits
- Delphi control arms undergo 100% crack detection and ultrasonic flaw detection to ensure materials match OE specifications
- Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
- Control arms utilize robot welding for consistent performance and quality
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TC2108 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Left Lower |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Bushings Included | Yes |
| Ball Joint Mounting Type | Bolt In |
| Ball Joint Stud Type | Threaded |
| Control Arm Construction | Stamped |
| Control Arm Material | Steel |
| Mounting Hardware Included | Yes |
| Mounting Hole Quantity | 1 |
| Adjustable | No |
| Greaseable | No |
| Control Arm Maximum Width | 15.354 IN |
| Control Arm Maximum Width | 390.00 MM |
| Control Arm Color | Black |
| Ball Joint Stud Length | 3.268 IN |
| Ball Joint Stud Length | 83.00 MM |
| Control Arm Maximum Length | 18.110 IN |
| Control Arm Maximum Length | 460.00 MM |
| Mounting Hole Diameter | 0.559 IN |
| Mounting Hole Diameter | 14.20 MM |
| Bushing Material | Rubber |
| Thread Direction | Clockwise (Right) |
| Bushing Color | Black |
| Finish | Painted |
| Dust Boot Included | Yes |
| Ball Joint Included | Yes |
| Grade Type | Premium |
| Boot Material | Chloroprene Rubber (CR) |
| Locking Nut Included | Yes |
| Boot Color | Black |
| Steering Type | Power |
| Bearing Material | Plastic |
| Dust Boot Material | Chloroprene Rubber (CR) |
Additional Information
| Harmonized Tariff Code (HTS) | 8708806590 |
| Country of Origin (Primary) | TR |
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| UPC | 00689604255612 |
| VMRS Code | 016001001 |
| UNSPSC | 25172013 |
DELPHI TC2108 Cross References
| Brand | Part Number |
|---|---|
| Beck/Arnley | 101-6552, 101-6554, 102-6552, 102-6554 |
| CORTECO | 49399915 |
| DORMAN | 520-489, CB45103, 520-545, CB45193, CB45193PR, CB45103PR |
| Dorman | 520-546, 521-159 |
| Ford | 1234375, 1254311, 1305342, 1309149, 1309645, 1328381, 1328671, 1332075, 1348192, 1355151, 1362651, 1477860, 1570678, 30714126, 3M513A424AG, 3M513A424AH, 3M513A424AJ, 4M513A424AB, 4M513A424AC, 6M5Y3A424BB |
| MAS Industries | CB45103, CB45193 |
| MEVOTECH | CMK80408, CMS10180, CMS10170 |
| MEYLE | 7160500032/HD, 7160500036/HD, 7146100021HD, 7166100004, 7166100005 |
| MOOG Chassis Products | K620596, K620598, RK620596, RK620598 |
| Mevotech | MS10181, MS10182, MS70162 |
| N/A | CK620596, GS80125, 520-545, CMS10170, CMS10182, CMS10180 |
| TRW | JTC1245 |
| VAICO | V509503 |
| Volvo | 30714126, 30714422, 30748231, 30760279, 31212979, 31277464 |
DELPHI TC2108 Fits Vehicles
- Volvo C30 (2007-2013)
- Volvo C70 (2006-2013)
- Volvo V50 (2005-2011)
- Volvo S40 (2004-2011)
