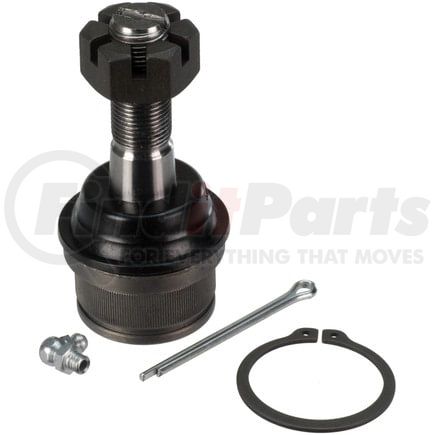

DELPHI TC1659 Part Description
Manufacturer
Product Description
Ball Joint
Features & Benefits
- Delphi ball joints manufactured with high quality forgings for increased strength and smooth operation
- Ball joints utilize chloroprene rubber boots which improves durability, preventing premature failure
- Delphi machines to micron tolerances to guarantee durability and smooth joint operation
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TC1659 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Upper |
| Material | Steel |
| Maximum Outside Diameter | 2.165 IN |
| Maximum Outside Diameter | 55.00 MM |
| Color | Gray |
| Stud Thread Diameter | 0.75 IN |
| Stud Thread Diameter | 19.05 MM |
| Castle Nut Included | Yes |
| Grease Fitting Included | Yes |
| Suspension Grade Type | Standard Replacement |
| Bushings Included | No |
| Dust Boot Included | Yes |
| Ball Joint Assembly | Yes |
| Width | 55 MM |
| Cotter Pin Included | Yes |
| Cotter Pin Hole | Yes |
| Mounting Hardware Included | Yes |
| Washers Included | No |
| Height | 4.327 IN |
| Height | 109.90 MM |
| Nuts Included | Yes |
| Mounting Hole Quantity | 0 |
| Adjustable | No |
| Greaseable | Yes |
| Stud Thread Length | 1.591 IN |
| Stud Thread Length | 40.4 MM |
| Stud Type | Threaded |
| Mounting Type | Press-In |
| Dust Boot Material | Rubber |
| Mount Plate Included | No |
| Tapered Stud | Yes |
| Stud Tapered End 2 Diameter | 0.874 IN |
| Stud Tapered End 2 Diameter | 22.2 MM |
| Stud Tapered End 1 Diameter | 0.752 IN |
| Stud Tapered End 1 Diameter | 19.1 MM |
| Stud Threads Per Inch | 16 |
| Length | 55.00 MM |
| Length | 2.170 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Country of Origin (Primary) | TR |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| UPC | 00689604268216 |
| VMRS Code | 016001014 |
| UNSPSC | 25174203 |
DELPHI TC1659 Cross References
| Brand | Part Number |
|---|---|
| DORMAN | B80026, B80026XL |
| Ford | 4746813, 4796453, 4C3Z 3049-DA, 4C3Z3049DB, 5C3Z 3049-AB, 8C3Z 3049-A, BC3Z 3049-B, E0TZ3049A, F3TZ3049A, MCF2224 |
| MAS Industries | B80026, BJ85086 |
| MEVOTECH | MS40506, TXK80026, TXMS40506 |
| MOOG Chassis Products | K80026, K8607T, K500087, K500259 |
| Mevotech | MK80026, MK8388T |
| N/A | GK80026, TXK80026, 610.65004, 4746813, 4796453, 4897 594AA, 4897 594AC, 4897594AB |
| TRW | JBJ882, JBJ1195 |
DELPHI TC1659 Fits Vehicles
- Ford F-250 HD (1997)
- Mercury Villager (1995-1997)
- Ford F-550 Super Duty (1999-2004)
- Ford F-450 Super Duty (1999-2004, 2011-2019)
- Ford F-350 Super Duty (1999-2022)
- Ford F-350 (1980-1997)
- Ford F-250 Super Duty (1999-2022)
- Ford F-250 (1980-1997)
- Ford F-150 (1980-1996)
- Ford Excursion (2000-2005)
- Ford E-350 Econoline Club Wagon (1995-1997)
- Ford Bronco (1980-1996)
- Dodge Ram 3500 (1994-1999)
- Dodge Ram 2500 (1994-1999)
