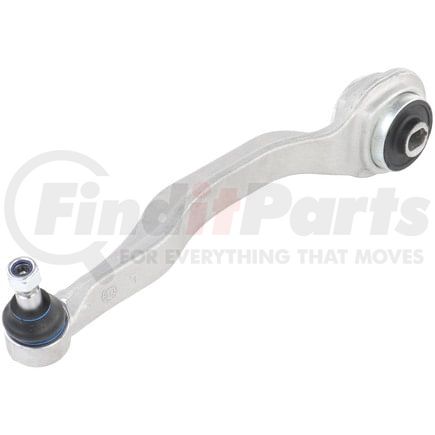

(888) 312-8812 Login SignupDELPHI TC1385 Control Arm and Ball Joint Assembly
Tap to view 23 more
$11649
Limited availability at this price!
1 Day Lead Time
Get it by Monday, Jun 22
DELPHI TC1385 Part Description
Manufacturer
Product Description
Control Arm and Ball Joint Assembly
Features & Benefits
- Delphi control arms undergo 100% crack detection and ultrasonic flaw detection to ensure materials match OE specifications
- Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
- Control arms utilize robot welding for consistent performance and quality
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TC1385 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Left Lower, Front Left Lower Forward. For the position specific to your vehicle, refer to the Applications. |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Bushings Included | Yes |
| Ball Joint Stud Type | Threaded |
| Control Arm Construction | Casting/Forged |
| Control Arm Material | Aluminum |
| Mounting Hardware Included | Yes |
| Mounting Hole Quantity | 1 |
| Greaseable | No |
| Control Arm Maximum Width | 3.937 IN |
| Control Arm Maximum Width | 100.00 MM |
| Control Arm Color | Gray |
| Ball Joint Thread Diameter | 14.00 MM |
| Ball Joint Stud Length | 70.00 MM |
| Control Arm Maximum Length | 18.504 IN |
| Control Arm Maximum Length | 470.00 MM |
| Bushing Material | Rubber |
| Thread Direction | Clockwise (Right) |
| Bushing Color | Black |
| Finish | Uncoated |
| Dust Boot Included | Yes |
| Ball Joint Included | Yes |
| Grade Type | Premium |
| Boot Material | Chloroprene Rubber (CR) |
| Locking Nut Included | Yes |
| Thread Diameter | 14.00 MM |
| Boot Color | Black |
| Steering Type | Power |
| Bearing Material | Plastic |
| Dust Boot Material | Chloroprene Rubber (CR) |
| Ball Joint Thread Diameter | 0.551 IN |
| Ball Joint Stud Length | 2.756 IN |
| Thread Diameter | 0.551 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | TR |
| UPC | 00689604252154 |
| VMRS Code | 016001001 |
| UNSPSC | 25172013 |
DELPHI TC1385 Cross References
| Brand | Part Number |
|---|---|
| Beck/Arnley | 101-6708, 102-6708 |
| CORTECO | 49398464 |
| DORMAN | CB28183, 520-963, CB28183PR |
| Deeza | MB-H207 |
| MAS Industries | CB28183 |
| MEYLE | 016 050 0034, 0160500034HD |
| MOOG Chassis Products | CK620538, K620538, K620727, RK620538, RK620727, RK622301 |
| Mercedes-Benz | 211 330 11 11, 211 330 15 11, 211 330 29 11, 211 330 43 11, 230 330 1711, A211 330 1111, A211 330 1511, A211 330 2911, A211 330 4311, A230 330 1711 |
| Mevotech | CMS10145, MS101190 |
| N/A | GS10145, CB28183PR, 520-963, 622.35006, 2113304911, A 211 330 49 11 |
| TRW | JTC1118 |
| VAICO | V30-7333 |
DELPHI TC1385 Fits Vehicles
- Mercedes-Benz SL63 AMG (2009, 2011-2013)
- Mercedes-Benz E550 (2007-2009)
- Mercedes-Benz CLS550 (2007-2011)
- Mercedes-Benz E63 AMG (2007-2009)
- Mercedes-Benz CLS63 AMG (2007-2011)
- Mercedes-Benz SL550 (2007-2009, 2011-2012)
- Mercedes-Benz E350 (2006-2009)
- Mercedes-Benz CLS55 AMG (2006)
- Mercedes-Benz CLS500 (2006)
- Mercedes-Benz SL65 AMG (2005-2011)
- Mercedes-Benz SL600 (2004-2010)
- Mercedes-Benz E55 AMG (2003-2006)
- Mercedes-Benz SL55 AMG (2003-2008)
- Mercedes-Benz SL500 (2003-2006)
- Mercedes-Benz E500 (2003-2006)
- Mercedes-Benz E320 (2003-2009)
DELPHI TC1385 Customer Reviews
No reviews yet
Be the first to review this product!
DELPHI TC1385 Questions & Answers
No questions yet
Be the first to ask a question about this product!
