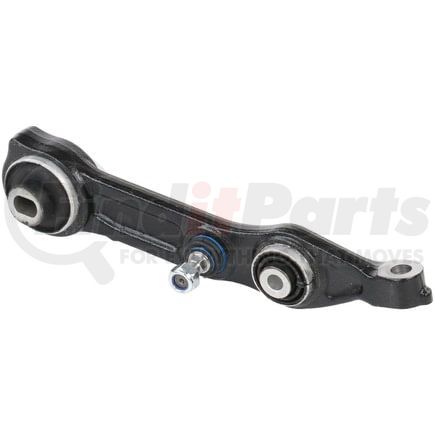

(888) 312-8812 Login SignupDELPHI TC1383 Control Arm and Ball Joint Assembly
Tap to view 23 more
MSRP: $127.89
$10349
Save $24.40
Limited availability at this price!
In Stock
Get it by Thursday, Feb 5
DELPHI TC1383 Part Description
Manufacturer
Product Description
Control Arm and Ball Joint Assembly
Features & Benefits
- Delphi control arms undergo 100% crack detection and ultrasonic flaw detection to ensure materials match OE specifications
- Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
- Control arms utilize robot welding for consistent performance and quality
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TC1383 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Left Lower Rearward |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Bushings Included | Yes |
| Ball Joint Stud Type | Threaded |
| Control Arm Construction | Casting/Forged |
| Control Arm Material | Steel |
| Mounting Hardware Included | Yes |
| Mounting Hole Quantity | 1 |
| Greaseable | No |
| Control Arm Maximum Width | 3.740 IN |
| Control Arm Maximum Width | 95.00 MM |
| Control Arm Color | Black |
| Ball Joint Thread Diameter | 14.00 MM |
| Ball Joint Stud Length | 56.00 MM |
| Control Arm Maximum Length | 3.937 IN |
| Control Arm Maximum Length | 100.00 MM |
| Bushing Material | Rubber |
| Thread Direction | Clockwise (Right) |
| Bushing Color | Black |
| Finish | Painted |
| Dust Boot Included | Yes |
| Ball Joint Included | Yes |
| Grade Type | Premium |
| Boot Material | Chloroprene Rubber (CR) |
| Locking Nut Included | Yes |
| Thread Diameter | 14.00 MM |
| Boot Color | Black |
| Steering Type | Power |
| Bearing Material | Plastic |
| Dust Boot Material | Chloroprene Rubber (CR) |
| Ball Joint Thread Diameter | 0.551 IN |
| Ball Joint Stud Length | 2.205 IN |
| Thread Diameter | 0.551 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | TR |
| UPC | 00689604252130 |
| VMRS Code | 016001001 |
| UNSPSC | 25172013 |
DELPHI TC1383 Cross References
| Brand | Part Number |
|---|---|
| Beck/Arnley | 101-6151, 102-6151 |
| CORTECO | 49399523 |
| DORMAN | 526-020, CA28203, CA28143, CA28143PR, CA28203PR, 528-341 |
| Deeza | MB-H223 |
| Dorman | 520-951 |
| MAS Industries | CA28143, CA28203 |
| MEYLE | 0140330091, 0146100064, 0160500017 |
| MOOG | RK620187 |
| MOOG Chassis Products | CK620187, RK620187 |
| Mercedes-Benz | 211 330 81 07, 211 330 91 07, A211 330 8107, A211 330 9107 |
| Mevotech | CMS10143, MS10143 |
| N/A | GS10143 |
| TRW | JTC1158 |
| UNITY AUTOMOTIVE | 2C-CAB620187, CAB620187 |
| VAICO | V30-7337 |
DELPHI TC1383 Fits Vehicles
- Mercedes-Benz E550 (2007-2009)
- Mercedes-Benz CLS550 (2007-2011)
- Mercedes-Benz CLS63 AMG (2007-2011)
- Mercedes-Benz E63 AMG (2007-2009)
- Mercedes-Benz E350 (2006-2009)
- Mercedes-Benz CLS55 AMG (2006)
- Mercedes-Benz CLS500 (2006)
- Mercedes-Benz E55 AMG (2003-2006)
- Mercedes-Benz E500 (2003-2006)
- Mercedes-Benz E320 (2003-2009)
