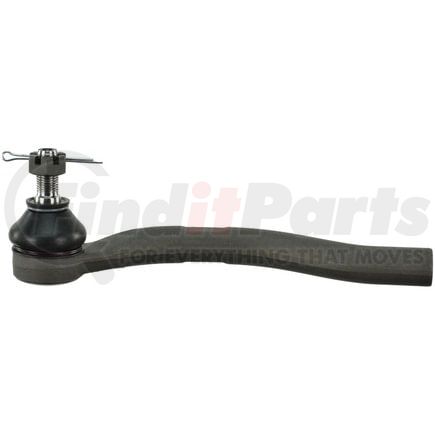

Delphi TA3003 - Tie Rod End
$2349
MSRP: $34.43
Save: $10.94
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
DELPHI part description
Product Description
Tie Rod End
Product Attributes
| Position(s) | Left Outer |
| Item Grade | Standard Replacement |
| Color | Black |
| End 2 Gender | Female |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Dust Boot Included | Yes |
| Width | 61 MM |
| Type | Bent |
| Mounting Hardware Included | Yes |
| End 2 Thread Diameter | 0.551 IN |
| End 2 Thread Diameter | 14.00 MM |
| Height | 71.70 MM |
| Housing Material | Steel |
| Tube Diameter | 0.787 IN |
| Tube Diameter | 20.00 MM |
| Adjustable | No |
| Greaseable | No |
| Weight | 1.56 lb |
| Cone Outside Diameter | 15.10 MM |
| Bearing Material | Plastic |
| End 1 Thread Direction | Clockwise (Right) |
| End 2 Thread Direction | Clockwise (Right) |
| Stud Type | Threaded |
| End 2 Thread Pitch | 1.5 MM |
| Length - Stud Center to End | 7.756 IN |
| Length - Stud Center to End | 197.00 MM |
| Dust Boot Material | Rubber |
| Tie Rod Material | Steel |
| End 1 Thread Diameter | 0.472 IN |
| End 1 Thread Diameter | 12.00 MM |
| Shank Length | 15.10 MM |
| Stud Length | 15.10 MM |
| Grade Type | Standard |
| Grade | Premium |
| Shank Length | 0.594 IN |
| Stud Length | 0.594 IN |
| Cone Outside Diameter | 0.594 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708998175 |
| Harmonized Tariff Code (HTS) | 8708998180 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | TR |
| UPC | 00689604249703 |
| VMRS Code | 015004020 |
| UNSPSC | 25174205 |
Part Interchanges
Fits Vehicles
- Acura ILX (2013-2022)
- Honda Civic (2012-2015)
