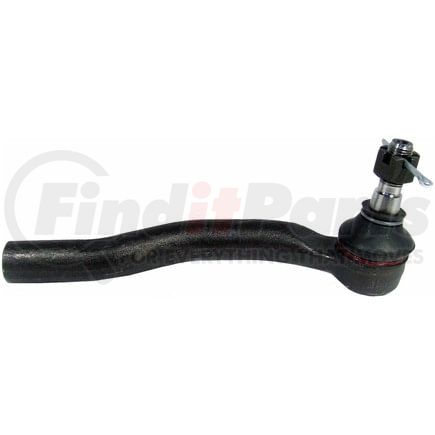

(888) 312-8812 Login SignupTie Rod End
| Position(s) | Right Outer |
| Item Grade | Standard Replacement |
| Color | Gray |
| End 2 Gender | Female |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Dust Boot Included | Yes |
| Width | 50.3 MM |
| Type | Bent |
| Mounting Hardware Included | Yes |
| End 2 Thread Diameter | 0.591 IN |
| End 2 Thread Diameter | 15.00 MM |
| Height | 76.80 MM |
| Housing Material | Steel |
| Tube Diameter | 0.866 IN |
| Tube Diameter | 22.00 MM |
| Adjustable | No |
| Greaseable | No |
| Weight | 1.63 lb |
| Cone Outside Diameter | 16.10 MM |
| Bearing Material | Plastic |
| End 1 Thread Direction | Clockwise (Right) |
| End 2 Thread Direction | Clockwise (Right) |
| Stud Type | Threaded |
| End 2 Thread Pitch | 1.5 MM |
| Length - Stud Center to End | 7.323 IN |
| Length - Stud Center to End | 186.00 MM |
| Dust Boot Material | Rubber |
| Tie Rod Material | Steel |
| End 1 Thread Diameter | 0.472 IN |
| End 1 Thread Diameter | 12.00 MM |
| Shank Length | 16.10 MM |
| Stud Length | 16.10 MM |
| Grade Type | Standard Replacement |
| Grade | Premium |
| Shank Length | 0.634 IN |
| Stud Length | 0.634 IN |
| Cone Outside Diameter | 0.634 IN |
| Harmonized Tariff Code (Schedule B) | 8708998175 |
| Country of Origin (Primary) | TR |
| Harmonized Tariff Code (HTS) | 8708998180 |
| Warranty Special | Limited |
| Warranty Special UOM | LT |
| UPC | 00689604248256 |
| VMRS Code | 015004019 |
| UNSPSC | 25174205 |
| Brand | Part Number |
|---|---|
| Beck/Arnley | 101-6696 |
| CORTECO | 49401003 |
| DORMAN | TO71002, TO71002PR |
| Dorman | 534-866 |
| Import Direct | ER06037 |
| MAS Industries | TO71002 |
| MEVOTECH | MS86645 |
| MOOG | ES800341 |
| MOOG Chassis Products | ES800341 |
| Mcquay-Norris | ES4546 |
| Mevotech | MS86644 |
| N/A | GS86644, TO71002PR, KTR4821 |
| TRW | JTE2078 |
| Toyota | 45046-09570, 45046-19405, 45046-19415 |
