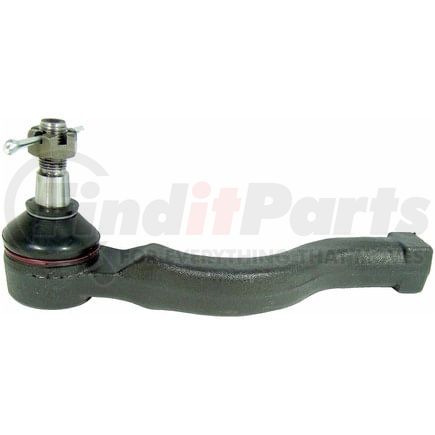

DELPHI TA2386 - Steering Tie Rod End - LH, Outer, Non-Adjustable, Steel, Non-Greaseable
$3049
MSRP: $41.09
Save: $10.60
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
DELPHI part description
California Proposition 65 Warning
California Proposition 65 Warning
WARNING: This product can expose you to chemicals including Carbon black, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov. (Read more)
Product Description
Tie Rod End
Product Attributes
| Position(s) | Left Outer |
| Item Grade | Standard Replacement |
| Color | Gray |
| End 2 Gender | Female |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Dust Boot Included | Yes |
| Width | 59.4 MM |
| Type | Bent |
| Mounting Hardware Included | Yes |
| End 2 Thread Diameter | 0.63 IN |
| End 2 Thread Diameter | 16.0 MM |
| Height | 82.6 MM |
| Housing Material | Steel |
| 36 | 1.024 IN |
| Tube Diameter | 26.0 MM |
| Adjustable | No |
| Greasable | No |
| Weight | 2.09 lb |
| Cone Outside Diameter | 16.0 MM |
| Bearing Material | Plastic |
| End 1 Thread Direction | Clockwise (Right) |
| End 2 Thread Direction | Clockwise (Right) |
| Stud Type | Threaded |
| End 2 Thread Pitch | 1.5 MM |
| Length Stud Center to End | 7.165 IN |
| Length Stud Center to End | 182.0 MM |
| Dust Boot Material | Choloroprene Rubber (CR) |
| Tie Rod Material | Steel |
| End 1 Thread Diameter | 12.0 MM |
| End 1 Thread Diameter | 0.472 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708998180 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Harmonized Tariff Code (Schedule B) | 8708998175 |
| Country of Origin (Primary) | TR |
| UPC | 00689604247921 |
| VMRS Code | 015004020 |
| UNSPSC | 25174205 |
Part Interchanges
Fits Vehicles
- Mitsubishi Montero (2001-2006)
