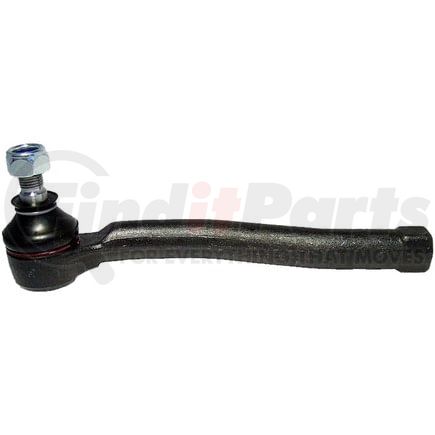

(888) 312-8812 Login SignupDELPHI TA2065 Tie Rod End
SHIPS MONDAY
MSRP: $26.77
$1849
Save $8.28
Limited availability at this price!
In Stock
Get it by Friday, Dec 26
DELPHI TA2065 Part Description
DELPHI TA2065 Specifications
Product Attributes
| Position(s) | Left Outer |
| Item Grade | Standard Replacement |
| Color | Gray |
| End 2 Gender | Female |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Dust Boot Included | Yes |
| Width | 45.4 MM |
| Type | Bent |
| Mounting Hardware Included | Yes |
| End 2 Thread Diameter | 0.472 IN |
| End 2 Thread Diameter | 12.00 MM |
| Height | 67.80 MM |
| Housing Material | Steel |
| Tube Diameter | 0.787 IN |
| Tube Diameter | 20.00 MM |
| Adjustable | No |
| Greaseable | No |
| Weight | 1.66 lb |
| Cone Outside Diameter | 15.10 MM |
| Bearing Material | Plastic |
| End 1 Thread Direction | Clockwise (Right) |
| End 2 Thread Direction | Clockwise (Right) |
| Stud Type | Threaded |
| End 2 Thread Pitch | 1.5 MM |
| Length - Stud Center to End | 7.480 IN |
| Length - Stud Center to End | 190.00 MM |
| Dust Boot Material | Rubber |
| Tie Rod Material | Steel |
| End 1 Thread Diameter | 0.472 IN |
| End 1 Thread Diameter | 12.00 MM |
| Shank Length | 15.10 MM |
| Stud Length | 15.10 MM |
| Grade Type | Standard |
| Grade | Premium |
| Shank Length | 0.594 IN |
| Stud Length | 0.594 IN |
| Cone Outside Diameter | 0.594 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708998180 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Harmonized Tariff Code (Schedule B) | 8708998175 |
| Country of Origin (Primary) | TR |
| UPC | 00689604247143 |
| VMRS Code | 015004020 |
| UNSPSC | 25174205 |
DELPHI TA2065 Part Interchanges
| Brand | Part Number |
|---|---|
| Beck/Arnley | 101-7818 |
| MOOG Chassis Products | ES800033 |
| Mevotech | MS50602 |
| Daewoo | 93740622, 93740722 |
| General Motors | 93740622, 93740722 |
| MAS Industries | TO90273, 534-813 |
| TRW | JTE7614 |
| N/A | GS50602, TO90273XL |
DELPHI TA2065 Fits Vehicles
- Pontiac Wave5 (2005-2007)
- Pontiac G3 Wave (2009)
- Pontiac G3 (2009-2010)
- Chevrolet Aveo5 (2006-2011)
- Suzuki Swift+ (2004-2009)
- Pontiac Wave (2005-2008)
- Chevrolet Aveo (2004-2011)
DELPHI TA2065 Customer Reviews
No reviews yet
Be the first to review this product!
