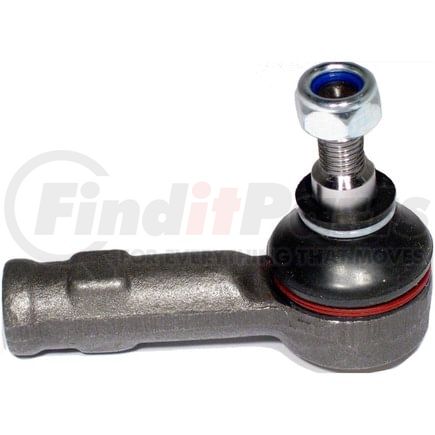

DELPHI TA2005 Part Description
Manufacturer
Product Description
Tie Rod End
Features & Benefits
- Delphi includes the necessary accessories for a complete job
- Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
- Delphi tie rods are fatigue tested to avoid failure
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TA2005 Specifications
Product Attributes
| Position(s) | Outer |
| Item Grade | Standard Replacement |
| Color | Black |
| End 2 Gender | Female |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Dust Boot Included | Yes |
| Width | 40 MM |
| Type | Straight |
| Mounting Hardware Included | Yes |
| End 2 Thread Diameter | 14.00 MM |
| End 2 Thread Diameter | 0.551 IN |
| Height | 73.00 MM |
| Housing Material | Steel |
| Tube Diameter | 19.80 MM |
| Tube Diameter | 0.780 IN |
| Adjustable | No |
| Greaseable | No |
| Weight | 0.79 lb |
| Cone Outside Diameter | 15.00 MM |
| Bearing Material | Plastic |
| End 1 Thread Direction | Clockwise (Right) |
| End 2 Thread Direction | Clockwise (Right) |
| Stud Type | Threaded |
| End 2 Thread Pitch | 1.5 MM |
| Length - Stud Center to End | 3.051 IN |
| Length - Stud Center to End | 77.50 MM |
| Dust Boot Material | Rubber |
| Tie Rod Material | Steel |
| End 1 Thread Diameter | 0.394 IN |
| End 1 Thread Diameter | 10.00 MM |
| Shank Length | 15.00 MM |
| Stud Length | 15.00 MM |
| Grade Type | Standard Replacement |
| Grade | Premium |
| Shank Length | 0.591 IN |
| Stud Length | 0.591 IN |
| Cone Outside Diameter | 0.591 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708998175 |
| Country of Origin (Primary) | TR |
| Harmonized Tariff Code (HTS) | 8708998180 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| UPC | 00689604246863 |
| VMRS Code | 015004045 |
| UNSPSC | 25174205 |
DELPHI TA2005 Cross References
| Brand | Part Number |
|---|---|
| Beck/Arnley | 101-4985 |
| CORTECO | 49399712 |
| DORMAN | T3377, T3377XL |
| Hyundai | 56820-25000 |
| Kia | 56820-25000 |
| MAS Industries | T3377 |
| MEVOTECH | MS90641, TXMS90653 |
| MOOG | ES3377 |
| MOOG Chassis Products | ES3377 |
| Mevotech | MES3377 |
| N/A | 56820-37000, 56820-2F000, MS90641, GES3377, TXMS90653, T3377XL, 612.51008 |
| TRW | JTE229 |
DELPHI TA2005 Fits Vehicles
- Kia Spectra5 (2005-2009)
- Kia Spectra (2004-2009)
- Hyundai Tiburon (1997-2001, 2003-2008)
- Hyundai Elantra (1999-2006)
- Hyundai Accent (2000-2006)
