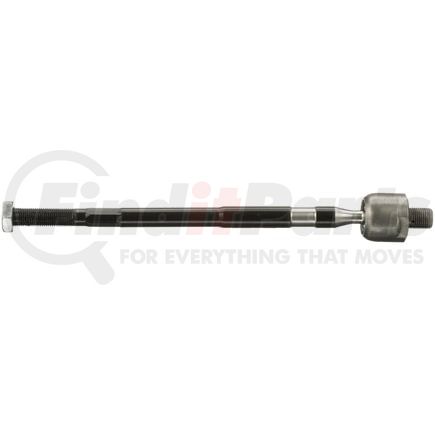

Delphi TA1560 - Tie Rod End
$2599
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
DELPHI part description
Product Description
Tie Rod End
Product Attributes
| Position(s) | Inner |
| Item Grade | Standard Replacement |
| Color | Black |
| End 1 Gender | Male |
| End 2 Gender | Male |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Dust Boot Included | No |
| Width | 36 MM |
| Type | Straight |
| Mounting Hardware Included | Yes |
| End 2 Thread Diameter | 14.00 MM |
| Height | 36.00 MM |
| Housing Material | Steel |
| Tube Diameter | 0.630 IN |
| Tube Diameter | 16.00 MM |
| Adjustable | No |
| Greaseable | No |
| Weight | 1.2 lb |
| Bearing Material | Plastic |
| End 1 Thread Direction | Clockwise (Right) |
| End 2 Thread Direction | Clockwise (Right) |
| End 2 Thread Pitch | 1.5 MM |
| Length - Stud Center to End | 10.787 IN |
| Length - Stud Center to End | 274.00 MM |
| Tie Rod Material | Steel |
| End 1 Thread Diameter | 16.00 MM |
| Grade Type | Standard |
| Locking Nut Included | Yes |
| Grade | Premium |
| End 2 Thread Diameter | 0.551 IN |
| End 1 Thread Diameter | 0.630 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708998180 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Harmonized Tariff Code (Schedule B) | 8708998175 |
| Country of Origin (Primary) | TR |
| UPC | 00689604245439 |
| VMRS Code | 015004070 |
| UNSPSC | 25174205 |
Part Interchanges
- Beck/Arnley 101-4116
- MOOG Chassis Products EV206
- MOOG Chassis Products EV223
- MOOG Chassis Products EV354
- MOOG Chassis Products EV392
- Mevotech MEV223
- Mevotech MEV354
- Mevotech MEV392
- Hyundai 56540-22000
- Hyundai 56542-43001
- Hyundai 57730-24000
- Hyundai 57730-28500
- Hyundai 57755-22000
- MAS Industries IS223
- MAS Industries IS354
- TRW JAR1281
- Import Direct AX07112
- Import Direct AX07138
- Import Direct AX07244
- 5773043010
- 57730-43000
Fits Vehicles
- Mitsubishi Precis (1990-1994)
- Mitsubishi Tredia (1988)
- Hyundai Excel (1990-1994)
- Hyundai Accent (1995-1999)
- Hyundai Elantra (1992-1995)
- Hyundai Scoupe (1991-1995)
