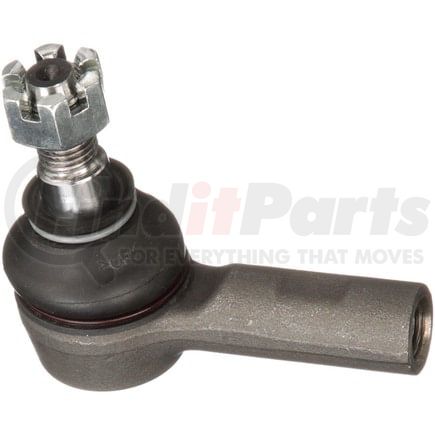

DELPHI TA1500 Part Description
Manufacturer
Product Description
Tie Rod End
Features & Benefits
- Delphi includes the necessary accessories for a complete job
- Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
- Delphi tie rods are fatigue tested to avoid failure
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TA1500 Specifications
Product Attributes
| Position(s) | Inner, Outer. For the position specific to your vehicle, refer to the Applications. |
| Item Grade | Standard Replacement |
| Color | Black |
| End 2 Gender | Female |
| Pre-Greased | Yes |
| Dust Boot Included | Yes |
| Width | 41 MM |
| Type | Straight |
| Mounting Hardware Included | Yes |
| End 2 Thread Diameter | 0.551 IN |
| End 2 Thread Diameter | 14.00 MM |
| Height | 80.00 MM |
| Housing Material | Steel |
| Tube Diameter | 1.060 IN |
| Tube Diameter | 27.00 MM |
| Adjustable | No |
| Weight | 0.97 lb |
| Cone Outside Diameter | 18.00 MM |
| Bearing Material | Plastic |
| End 1 Thread Direction | Clockwise (Right) |
| End 2 Thread Direction | Clockwise (Right) |
| Stud Type | Threaded |
| End 2 Thread Pitch | 1.5 MM |
| Length - Stud Center to End | 2.953 IN |
| Length - Stud Center to End | 75.00 MM |
| Dust Boot Material | Rubber |
| Tie Rod Material | Steel |
| End 1 Thread Diameter | 0.551 IN |
| End 1 Thread Diameter | 14.00 MM |
| Shank Length | 18.00 MM |
| Stud Length | 18.00 MM |
| Grade Type | Standard Replacement |
| Grade | Premium |
| Shank Length | 0.709 IN |
| Stud Length | 0.709 IN |
| Cone Outside Diameter | 0.709 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708998175 |
| Harmonized Tariff Code (HTS) | 8708998180 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | TR |
| UPC | 00689604245286 |
| VMRS Code | 015004045 |
| UNSPSC | 25174205 |
DELPHI TA1500 Cross References
| Brand | Part Number |
|---|---|
| Beck/Arnley | 101-4205 |
| CORTECO | 49400691, 49399986 |
| DORMAN | T2953, T2953PR, 534-446 |
| Honda | 324057, 8-94419-408-0, 97020953 |
| Import Direct | AX02015 |
| Isuzu | 8-94419-408-0, 8-94419408-1, 8-94459480-0, 8-94459480-2, 8-97940616-0, 8-97956902-A |
| MAS Industries | T2953 |
| MOOG Chassis Products | ES2953 |
| Mevotech | MES2953 |
| N/A | GES2953 |
| Opel | 324057 |
| TRW | JTE418 |
| VAICO | V400511 |
| Vauxhall | 920373, 94419408, 94459480, 97020953 |
DELPHI TA1500 Fits Vehicles
- Honda Passport (1994-1997)
- Acura SLX (1996-1999)
- Isuzu VehiCROSS (1999-2001)
- Isuzu Trooper (1987-2002)
- Isuzu Rodeo (1991-1997)
- Isuzu Pickup (1988-1995)
- Isuzu Amigo (1989-1994)
