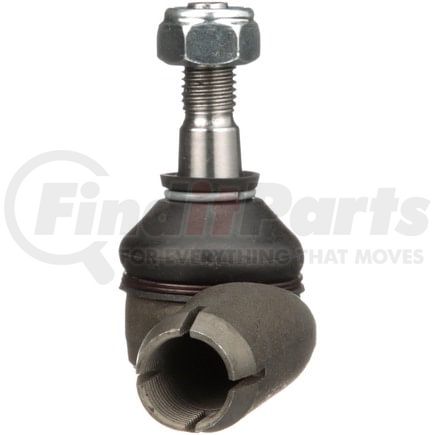

DELPHI TA1453 Part Description
Manufacturer
Product Description
Tie Rod End
Features & Benefits
- Delphi includes the necessary accessories for a complete job
- Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
- Delphi tie rods are fatigue tested to avoid failure
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TA1453 Specifications
Product Attributes
| Position(s) | Right Outer |
| Item Grade | Standard Replacement |
| Color | Gray |
| End 2 Gender | Female |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Dust Boot Included | Yes |
| Width | 49 MM |
| Type | Bent |
| Mounting Hardware Included | Yes |
| End 2 Thread Diameter | 0.709 IN |
| End 2 Thread Diameter | 18.00 MM |
| Height | 79.00 MM |
| Housing Material | Steel |
| Tube Diameter | 0.925 IN |
| Tube Diameter | 23.50 MM |
| Adjustable | No |
| Greaseable | No |
| Weight | 0.84 lb |
| Cone Outside Diameter | 14.30 MM |
| Bearing Material | Plastic |
| End 1 Thread Direction | Clockwise (Right) |
| End 2 Thread Direction | Clockwise (Right) |
| Stud Type | Threaded |
| End 2 Thread Pitch | 1.5 MM |
| Length - Stud Center to End | 2.913 IN |
| Length - Stud Center to End | 74.00 MM |
| Dust Boot Material | Rubber |
| Tie Rod Material | Steel |
| End 1 Thread Diameter | 0.472 IN |
| End 1 Thread Diameter | 12.00 MM |
| Shank Length | 14.30 MM |
| Stud Length | 14.30 MM |
| Grade Type | Standard Replacement |
| Grade | Premium |
| Shank Length | 0.563 IN |
| Stud Length | 0.563 IN |
| Cone Outside Diameter | 0.563 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708998175 |
| Country of Origin (Primary) | TR |
| Harmonized Tariff Code (HTS) | 8708998180 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| UPC | 00689604245194 |
| VMRS Code | 015004019 |
| UNSPSC | 25174205 |
DELPHI TA1453 Cross References
DELPHI TA1453 Fits Vehicles
- Audi A6 (1995-1998)
- Audi 100 (1992-1994)
