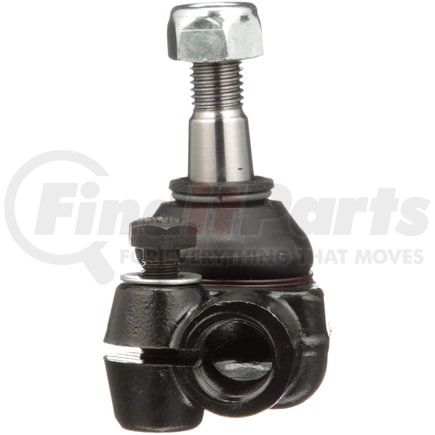

(888) 312-8812 Login SignupDELPHI TA1210 Tie Rod End
$2099
Limited availability at this price!
In Stock
Get it by Friday, Dec 19
DELPHI TA1210 Part Description
DELPHI TA1210 Specifications
Product Attributes
| Position(s) | Right Outer |
| Item Grade | Standard Replacement |
| Color | Black |
| End 2 Gender | Female |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Dust Boot Included | Yes |
| Width | 43 MM |
| Type | Bent |
| Mounting Hardware Included | Yes |
| End 2 Thread Diameter | 16.00 MM |
| End 2 Thread Diameter | 0.630 IN |
| Height | 87.80 MM |
| Housing Material | Steel |
| Tube Diameter | 23.00 MM |
| Tube Diameter | 0.906 IN |
| Adjustable | No |
| Greaseable | No |
| Weight | 1.06 lb |
| Cone Outside Diameter | 15.50 MM |
| Bearing Material | Plastic |
| End 1 Thread Direction | Clockwise (Right) |
| End 2 Thread Direction | Counterclockwise (Left) |
| Stud Type | Threaded |
| End 2 Thread Pitch | 2 MM |
| Length - Stud Center to End | 67.00 MM |
| Length - Stud Center to End | 2.638 IN |
| Dust Boot Material | Rubber |
| Tie Rod Material | Steel |
| End 1 Thread Diameter | 0.472 IN |
| End 1 Thread Diameter | 12.00 MM |
| Shank Length | 15.50 MM |
| Stud Length | 15.50 MM |
| Grade Type | Standard |
| Grade | Premium |
| Shank Length | 0.610 IN |
| Stud Length | 0.610 IN |
| Cone Outside Diameter | 0.610 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708998175 |
| Harmonized Tariff Code (HTS) | 8708998180 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | TR |
| UPC | 00689604244937 |
| VMRS Code | 015004019 |
| UNSPSC | 25174205 |
DELPHI TA1210 Part Interchanges
| Brand | Part Number |
|---|---|
| Beck/Arnley | 101-4728 |
| Raybestos Chassis | 401-1793 |
| MOOG Chassis Products | ES3237 |
| Mcquay-Norris | ES3237 |
| Mevotech | MES3237 |
| Deeza | SA-T204 |
| Saab | 324056, 42 42 756, 90 36 9705 |
| Opel | 0324054, 0324056, 324054, 324056 |
| MAS Industries | T3237, TO36004 |
| TRW | JTE310 |
| Vauxhall | 90 36 9705, 90304622, 90350448, 90373520 |
| Import Direct | ER01011 |
| N/A | 324052, TO36004PR, 534529, GES3237 |
DELPHI TA1210 Fits Vehicles
- Saab 9-3 (1999-2003)
- Saab 900 (1994-1998)
