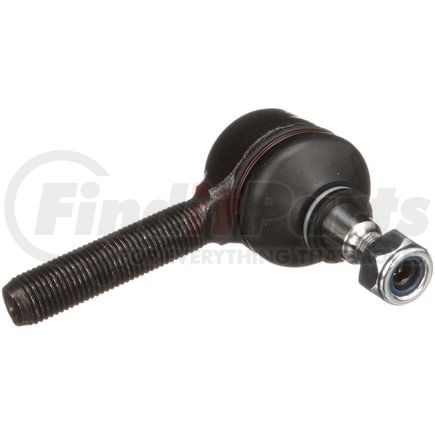

(888) 312-8812 Login SignupDELPHI TA1152 Tie Rod End
Tap to view 2 more
$1849
Limited availability at this price!
1 Day Lead Time
Get it by Monday, Feb 23
DELPHI TA1152 Part Description
Manufacturer
Product Description
Tie Rod End
Features & Benefits
- Delphi includes the necessary accessories for a complete job
- Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
- Delphi tie rods are fatigue tested to avoid failure
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TA1152 Specifications
Product Attributes
| Position(s) | Left Inner, Right Outer. For the position specific to your vehicle, refer to the Applications. |
| Item Grade | Standard Replacement |
| Color | Black |
| End 1 Gender | Male |
| End 2 Gender | Male |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Dust Boot Included | Yes |
| Width | 42.5 MM |
| Type | Straight |
| Mounting Hardware Included | Yes |
| End 2 Thread Diameter | 0.551 IN |
| End 2 Thread Diameter | 14.00 MM |
| Height | 72.30 MM |
| Housing Material | Steel |
| Tube Diameter | 0.551 IN |
| Tube Diameter | 14.00 MM |
| Adjustable | No |
| Greaseable | No |
| Weight | 0.75 lb |
| Cone Outside Diameter | 16.00 MM |
| Bearing Material | Plastic |
| End 1 Thread Direction | Clockwise (Right) |
| End 2 Thread Direction | Clockwise (Right) |
| Stud Type | Threaded |
| End 2 Thread Pitch | 1.5 MM |
| Length - Stud Center to End | 3.228 IN |
| Length - Stud Center to End | 82.00 MM |
| Dust Boot Material | Rubber |
| Tie Rod Material | Steel |
| End 1 Thread Diameter | 0.394 IN |
| End 1 Thread Diameter | 10.00 MM |
| Shank Length | 16.00 MM |
| Stud Length | 16.00 MM |
| Grade Type | Standard Replacement |
| Grade | Premium |
| Shank Length | 0.630 IN |
| Stud Length | 0.630 IN |
| Cone Outside Diameter | 0.630 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708998175 |
| Harmonized Tariff Code (HTS) | 8708998180 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | TR |
| UPC | 00689604244791 |
| VMRS Code | 015004045 |
| UNSPSC | 25174205 |
DELPHI TA1152 Cross References
| Brand | Part Number |
|---|---|
| BMW | 3221 1127 917, 3221 1130 004, 3221 1135 820 |
| Beck/Arnley | 101-3770 |
| CORTECO | 49400920 |
| DORMAN | T2763, T2763PR, 534-420 |
| Deeza | BW-S201 |
| Import Direct | ER02030 |
| MAS Industries | T2763 |
| MEYLE | 316 020 4215, 3160304214 |
| MOOG Chassis Products | ES2763R |
| Mcquay-Norris | ES2763R |
| Mevotech | MES2762A, MES2763R |
| N/A | 3380710, 324107, 32212775003, 32211135824, GES2763R, 3381910, 3384810, 3385110, 3385210, 3385410, MES2096R, MES3143R |
| TRW | JTE156 |
| VAICO | V20-7053 |
DELPHI TA1152 Fits Vehicles
- BMW 535is (1988)
- BMW M6 (1987-1988)
- BMW M5 (1988, 1991-1993)
- BMW 850i (1991-1992)
- BMW 850CSi (1994-1995)
- BMW 850Ci (1993-1997)
- BMW 840Ci (1994-1997)
- BMW 750iL (1988-1994)
- BMW 740iL (1993-1994)
- BMW 740i (1993-1994)
- BMW 735iL (1988-1992)
- BMW 735i (1987-1992)
- BMW 635CSi (1985-1989)
- BMW 633CSi (1983-1984)
- BMW 540i (1994-1995)
- BMW 535i (1985-1993)
- BMW 533i (1983-1984)
- BMW 530i (1994-1995)
- BMW 528e (1982-1988)
- BMW 525i (1989-1995)
- BMW 524td (1985-1986)
