CENTRIC 320.66067 Part Description
Manufacturer
Product Description

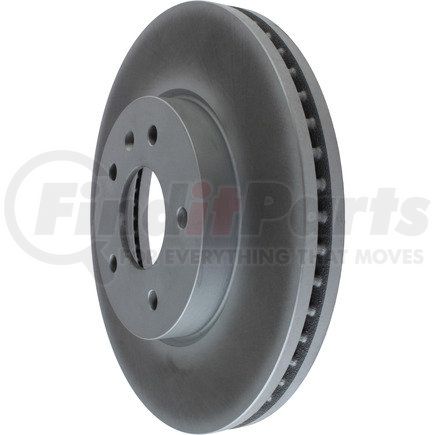

Centric GCX Rotor with Partial Coating
Features & Benefits
- RS200 Coating our exclusive corrosion resistant coating for longer life and good looks; Iron FormulationEnhanced iron and high carbon metallurgies means the right rotor for your car; Operational Efficiency Full coverage with 80% fewer SKUs
CENTRIC 320.66067 Specifications
Product Attributes
| Misc Holes [cntrc] | 1 |
| Vane Style [cntrc] | Straight |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Product Grade [cntrc] | Premium |
| Weight [cntrc] Kgs | 8.930 |
| Disc Mounting [cntrc] | Floating |
| Weight [cntrc] Lbs | 19.650 |
| Discard Thickness | 27.400 MM |
| Discard Thickness | 1.079 IN |
| Nominal Thickness | 29.000 MM |
| Nominal Thickness | 1.142 IN |
| Disc Finish | Partially Coated |
| Hat Finish | Coated |
| Overall Height | 51.800 MM |
| Overall Height | 2.039 IN |
| Outside Diameter | 11.646 IN |
| Outside Diameter | 295.800 MM |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Bearings Included | No |
| Center Hole Diameter | 70.700 MM |
| Center Hole Diameter | 2.783 IN |
| Mounting Bolt Hole Circle Diameter | 114.300 MM |
| Mounting Bolt Hole Circle Diameter | 4.500 IN |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Diameter | 12.500 MM |
| Stud/Lug Hole Diameter | 0.492 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 889590253115 |
CENTRIC 320.66067 Part Interchanges
| Brand | Part Number |
|---|---|
| Raybestos Brakes | 580547, 580547FZN, 580547R |
| N/A | 90047070 |
CENTRIC 320.66067 Cross References
We have 3 alternatives for the 320.66067 by CENTRIC:
