Centric 320.47021 - Centric GCX Rotor with Partial Coating
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
CENTRIC part description
Product Description

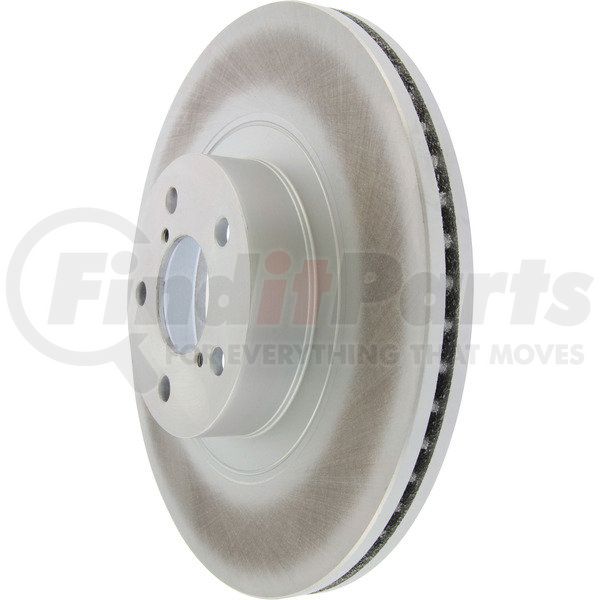

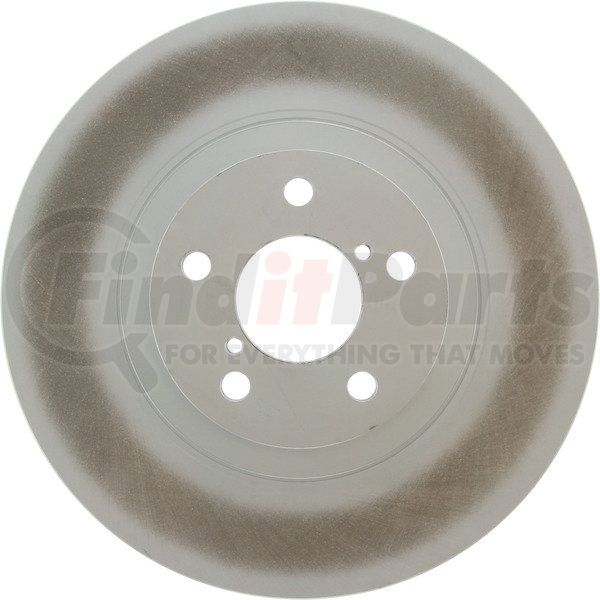

Centric GCX Rotor with Partial Coating
Features & Benefits
- RS200 Coating our exclusive corrosion resistant coating for longer life and good looks; Iron FormulationEnhanced iron and high carbon metallurgies means the right rotor for your car; Operational Efficiency Full coverage with 80% fewer SKUs
Product Attributes
| Weight [cntrc] Kgs | 7.950 |
| Hat Id [cntrc] Mm | 128.800 |
| Hat Id [cntrc] In | 5.071 |
| Vane Style [cntrc] | Straight |
| Product Grade [cntrc] | Premium |
| Misc Holes [cntrc] | 2 |
| Weight [cntrc] Lbs | 17.500 |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Disc Mounting [cntrc] | Floating |
| Discard Thickness | 22.000 MM |
| Discard Thickness | 0.866 IN |
| Nominal Thickness | 0.945 IN |
| Nominal Thickness | 24.000 MM |
| Disc Finish | Partially Coated |
| Hat Finish | Coated |
| Overall Height | 56.700 MM |
| Overall Height | 2.232 IN |
| Outside Diameter | 293.500 MM |
| Outside Diameter | 11.555 IN |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Bearings Included | No |
| Center Hole Diameter | 58.000 MM |
| Center Hole Diameter | 2.283 IN |
| Mounting Bolt Hole Circle Diameter | 100.000 MM |
| Mounting Bolt Hole Circle Diameter | 3.937 IN |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Diameter | 12.700 MM |
| Stud/Lug Hole Diameter | 0.500 IN |
Additional Information
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 889590251555 |
