CENTRIC 320.42096 Part Description
Manufacturer
Product Description

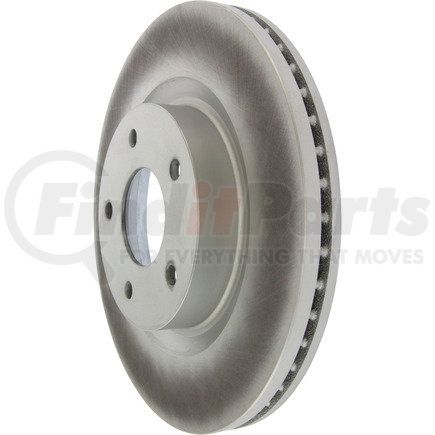

Centric GCX Rotor with Partial Coating
Features & Benefits
- RS200 Coating our exclusive corrosion resistant coating for longer life and good looks; Iron FormulationEnhanced iron and high carbon metallurgies means the right rotor for your car; Operational Efficiency Full coverage with 80% fewer SKUs
CENTRIC 320.42096 Specifications
Product Attributes
| Disc Mounting [cntrc] | Floating |
| Product Grade [cntrc] | Premium |
| Misc Holes [cntrc] | 0 |
| Weight [cntrc] Kgs | 8.090 |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Vane Style [cntrc] | Straight |
| Weight [cntrc] Lbs | 17.800 |
| Discard Thickness | 0.945 IN |
| Discard Thickness | 24.000 MM |
| Nominal Thickness | 26.000 MM |
| Nominal Thickness | 1.024 IN |
| Disc Finish | Partially Coated |
| Hat Finish | Coated |
| Overall Height | 49.400 MM |
| Overall Height | 1.945 IN |
| Outside Diameter | 11.646 IN |
| Outside Diameter | 295.800 MM |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Bearings Included | No |
| Center Hole Diameter | 68.000 MM |
| Center Hole Diameter | 2.677 IN |
| Mounting Bolt Hole Circle Diameter | 114.300 MM |
| Mounting Bolt Hole Circle Diameter | 4.500 IN |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Diameter | 12.500 MM |
| Stud/Lug Hole Diameter | 0.492 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 889590250879 |
CENTRIC 320.42096 Part Interchanges
| Brand | Part Number |
|---|---|
| Raybestos Brakes | 980562, 980562FZN, 980562R |
| N/A | 90067057, HC31464X |
CENTRIC 320.42096 Cross References
We have 3 alternatives for the 320.42096 by CENTRIC:
