CENTRIC 320.40061 Part Description
Manufacturer
Product Description

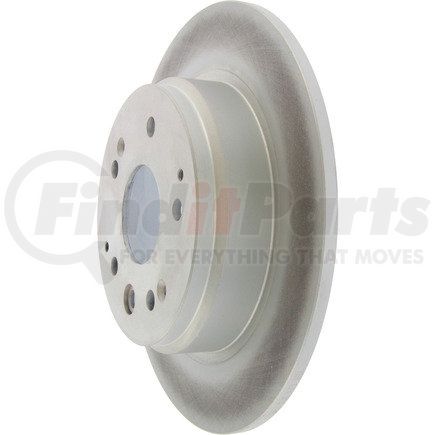

Centric GCX Rotor with Partial Coating
Features & Benefits
- RS200 Coating our exclusive corrosion resistant coating for longer life and good looks; Iron FormulationEnhanced iron and high carbon metallurgies means the right rotor for your car; Operational Efficiency Full coverage with 80% fewer SKUs
CENTRIC 320.40061 Specifications
Product Attributes
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Weight [cntrc] Lbs | 10.250 |
| Weight [cntrc] Kgs | 4.660 |
| Max Pb Drum Dia [cntrc] In | 6.732 |
| Misc Holes [cntrc] | 5 |
| Product Grade [cntrc] | Premium |
| Max Pb Drum Dia [cntrc] Mm | 171.000 |
| Disc Mounting [cntrc] | Floating / DIH |
| Discard Thickness | 0.295 IN |
| Discard Thickness | 7.500 MM |
| Nominal Thickness | 9.000 MM |
| Nominal Thickness | 0.354 IN |
| Disc Finish | Partially Coated |
| Hat Finish | Coated |
| Overall Height | 58.700 MM |
| Overall Height | 2.311 IN |
| Outside Diameter | 282.000 MM |
| Outside Diameter | 11.102 IN |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Solid |
| Nominal Drum Diameter | 170.000 MM |
| Nominal Drum Diameter | 6.693 IN |
| Bearings Included | No |
| Center Hole Diameter | 2.528 IN |
| Center Hole Diameter | 64.200 MM |
| Mounting Bolt Hole Circle Diameter | 114.300 MM |
| Mounting Bolt Hole Circle Diameter | 4.500 IN |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Diameter | 12.450 MM |
| Stud/Lug Hole Diameter | 0.490 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 889590250541 |
CENTRIC 320.40061 Part Interchanges
| Brand | Part Number |
|---|---|
| Raybestos Brakes | 980151, 980151FZN, 980151R |
| N/A | 90058019, HC31316X |
