FRAM HP19 - FRAM, HP19, Oil Filter
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
FRAM part description
Product Description

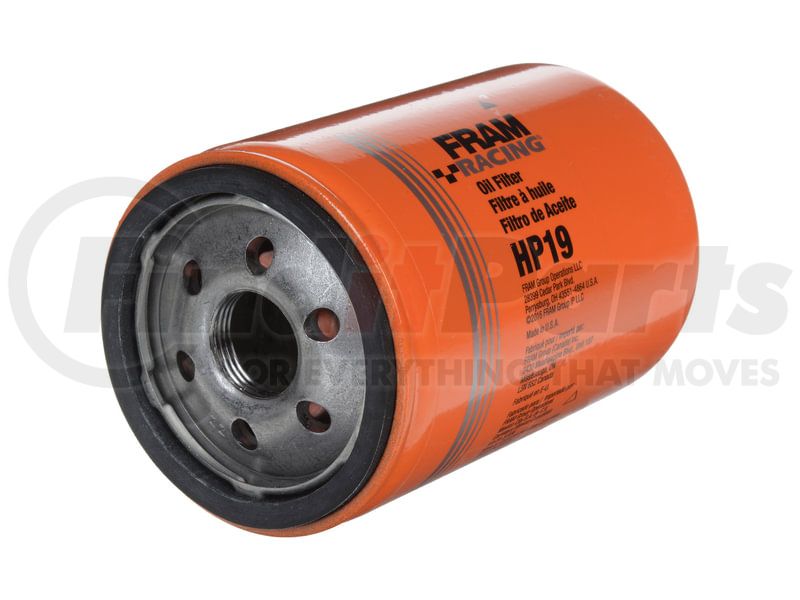

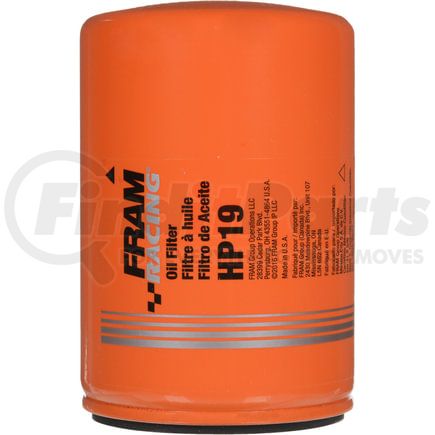

FRAM, HP19, Oil Filter
Features & Benefits
- Low-restriction synthetic blend racing media designed for high oil flow. The media features 94% efficiency @20 microns for excellent engine protection**
- Silicone anti-drain back valve.
- Recommended maximum oil flow: 10-18gpm, depending on model***
- Maximum burst pressure: 350-500psi, depending on model***
- Maximum operating pressure: 200psi on all models***
- Compatible with all oil types, this filter is optimized for racing and high-performance street cars
Product Attributes
| Filter Media Material | Cellulose/Synthetic Blend |
| Height | 4.450 IN |
| Anti-Drain Back Valve | Yes |
| Bypass Relief Valve | Yes |
| Filter Type | Spin-On Canister |
| Gasket Thickness | 0.266 IN |
| Housing Color | Orange |
| Non Slip Grip | No |
| Torque Nut | No |
| Gasket Inside Diameter | 2.380 IN |
| Gasket Outside Diameter | 2.750 IN |
| Marine Approved | No |
| Burst Pressure | 350.000 PS |
| Bypass Relief Valve Setting | 16-28 PS |
| Gasket Material | Base |
| Gasket Type | Base |
| Grade | Advanced |
| Inlet Type | Threaded |
| Inside Thread Diameter | 22mm x 1.5mm |
| Outside Diameter | 2.940 IN |
| Thread Size | Metric |
| Burst Pressure | 350.000 PS |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (HTS) | 8421230000 |
| Warranty Special | See Rep |
| Warranty Special UOM | SR |
| Warranty Time | 30 |
| Warranty Time UOM | DA |
| UPC | 00009100559838 |
| UNSPSC | 15121501 |
Part Interchanges
Fits Vehicles
- Suzuki Aerio (2002)
- Chevrolet Traverse Limited (2024)
- Chevrolet LCF 3500HG (2024-2025)
- Jeep Grand Wagoneer L (2024-2025)
- Chevrolet LCF 3500 (2020-2023)
- Ford Transit (2015-2018)
- GMC Savana 4500 (2021-2023)
- Chevrolet LCF 4500 (2020-2022)
- Chevrolet Express 4500 (2021-2024)
- Jeep Grand Wagoneer (2022-2024)
- Chevrolet Silverado 1500 LTD (2022)
- Isuzu NPR-HD (2020-2022)
- Chevrolet Silverado 1500 LD (2019)
- Chevrolet Captiva Sport (2011, 2013)
- Chevrolet Impala Limited (2016)
- Mitsubishi Raider (2009)
- Mazda Tribute (2009-2011)
- Dodge Durango (2009)
- Cadillac XT6 (2020-2024)
- Cadillac CT4 (2022-2025)
- Chevrolet Express 3500 (2018-2024)
- Chevrolet Silverado 2500 HD (2020-2025)
- GMC Sierra 2500 HD (2020-2025)
- GMC Sierra 3500 HD (2020-2025)
- Chevrolet Express 2500 (2018-2024)
- Chevrolet Silverado 3500 HD (2020-2025)
- Cadillac CT5 (2020-2025)
- GMC Sierra 1500 Limited (2019, 2022)
- Cadillac XT5 (2017-2024)
- Chevrolet Blazer (2019-2024)
- Lincoln Continental (2017-2020)
- Buick Regal Sportback (2018-2020)
- GMC Savana 2500 (2018-2024)
- GMC Savana 3500 (2018-2024)
- GMC Acadia Limited (2017)
- Mobility Ventures MV-1 (2015-2017)
- Chevrolet Camaro (2016-2024)
- Cadillac CT6 (2016-2020)
- Chevrolet Suburban (2015-2024)
- Chevrolet Tahoe (2015-2024)
- Lincoln Navigator (2015-2024)
- Ford Expedition (2015-2024)
- Cadillac Escalade ESV (2015-2024)
- Cadillac ATS (2016-2019)
- Cadillac CTS (2014-2019)
- Ford Transit-350 HD (2015-2024)
- Ram 1500 (2011-2012, 2025)
- Ford Transit-350 (2015-2024)
- Ford Transit-150 (2015-2024)
- Ford Transit-250 (2015-2024)
- GMC Yukon XL (2015-2024)
- GMC Yukon (2015-2024)
- Cadillac Escalade (2015-2024)
- GMC Acadia (2011-2023)
- Cadillac XTS (2013-2019)
- GMC Sierra 1500 (2014-2024)
- Chevrolet Silverado 1500 (2014-2024)
- Ford Police Interceptor Utility (2013-2024)
- Chevrolet Impala (2013-2020)
- Ford Police Interceptor Sedan (2013-2019)
- Buick Enclave (2011-2024)
- Chevrolet Equinox (2011-2017)
- Ford Flex (2009-2019)
- Ram Dakota (2011)
- Chevrolet Traverse (2011-2023)
- Buick LaCrosse (2011-2019)
- Jeep Liberty (2008-2012)
- Cadillac SRX (2011-2016)
- Mercury Mariner (2009-2011)
- Ford F-150 (2011-2024)
- Jeep Grand Cherokee (2009-2010)
- Ford Explorer (2011-2023)
- Ford Taurus X (2009)
- Ford Edge (2009-2018)
- Lincoln MKX (2009-2018)
- Ford Mustang (2011-2025)
- Ford Escape (2009-2012)
- Dodge Dakota (2009-2010)
- Mercury Milan (2009-2011)
- Ford Fusion (2009-2012)
- Lincoln MKS (2009-2016)
- Lincoln MKT (2010-2019)
- Lincoln MKZ (2009-2016)
- GMC Terrain (2010-2017)
- Jeep Commander (2009-2010)
- Mercury Sable (2009)
- Ford Taurus (2009-2019)
- Dodge Ram 1500 (2009-2010)
- Dodge Nitro (2009-2011)
