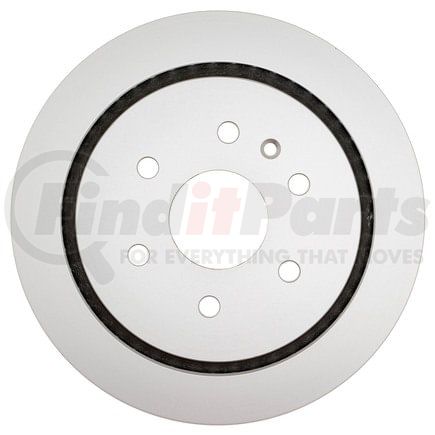

(888) 312-8812 Login SignupRAYBESTOS 581783 Raybestos Specialty - Street Performance Coated Brake Rotor
$103.67
MSRP Pricing shown.
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
RAYBESTOS 581783 Part Description
Manufacturer
Product Description
Raybestos Specialty - Street Performance Coated Brake Rotor
Application Summary
2019-2013 Cadillac XTS Rear
Features & Benefits
- Application Specific Enhanced Iron
- Raybestos® Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Raybestos(R) Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Cooling Vanes
- The cooling vanes match OE configurations and provide optimal cooling and reduced fade.
- Application Specific Coating
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0® coating on the entire rotor
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0(R) coating on the entire rotor
- Black fusion coating on the rotor hat and Grey Fusion 4.0® coating on the rotor inboard surface and cooling vanes
- Black fusion coating on the rotor hat and Grey Fusion 4.0(R) coating on the rotor inboard surface and cooling vanes
- Turned Finish
- Turned finish minimizes noise and improves responsiveness for smoother stops.
- S-Groove Slot
- Depending on the application, some Raybestos® Performance Rotors are designed with a patented S-Groove Slot.
- Depending on the application, some Raybestos(R) Performance Rotors are designed with a patented S-Groove Slot.
RAYBESTOS 581783 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 3.094 IN |
| Center Hole Diameter | 78.6 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 0.77 IN |
| Discard Thickness | 19.55 MM |
| Harmonize Code | 8708.30.5030 |
| Mounting Bolt Hole Circle Diameter | 5.5 IN |
| Mounting Bolt Hole Circle Diameter | 139.7 MM |
| Mounting Bolt Hole Quantity | 6 |
| Nominal Thickness | 0.83 IN |
| Nominal Thickness | 21.1 MM |
| Outside Diameter | 13.78 IN |
| Outside Diameter | 350 MM |
| Overall Height | 2.413 IN |
| Overall Height | 61.3 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 6 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00887213172812 |
RAYBESTOS 581783 Cross References
| Brand | Part Number |
|---|---|
| ADVANCE AUTO PARTS | YH290610, YH479072P |
| AUTOZONE | 41284, 41284DG |
| Advance Auto Parts | YH479072 |
| BRAKEBEST | 521491RGS, 581783, 581783FZN, 581783R |
| CENTRIC | 120.62137, 121.62137, 126.62137SL, 126.62137SR, 127.62137L, 127.62137R, 320.62137 |
| Centric Parts | 120.62137, 121.62137, 126.62137SL, 126.62137SR, 127.62137L, 127.62137R, 320.62137 |
| GM | 22780797, 22980047 |
| General Motors | 22780797, 22980047 |
| PROMAX | 14-650005 |
| Qualis | 41284 |
| WAGNER BRAKE | BD180599 |
| WORLDPAC | 1407-479072 |
RAYBESTOS 581783 Fits Vehicles
- Cadillac XTS (2013-2019)
