(888) 312-8812 Login SignupCENTRIC 320.62137 Centric GCX Rotor with Partial Coating
Tap to view 4 more
$143.46
MSRP Pricing shown.
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
CENTRIC 320.62137 Part Description
Manufacturer
Product Description

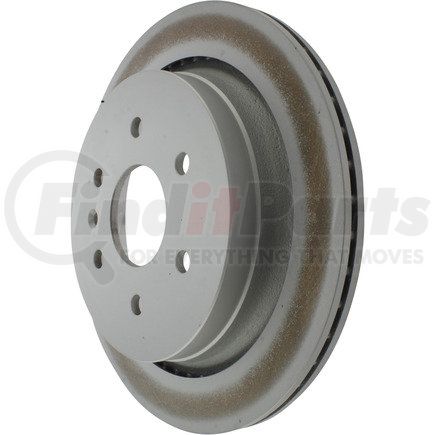

Centric GCX Rotor with Partial Coating
Features & Benefits
- RS200 Coating our exclusive corrosion resistant coating for longer life and good looks; Iron FormulationEnhanced iron and high carbon metallurgies means the right rotor for your car; Operational Efficiency Full coverage with 80% fewer SKUs
- For the best corrosion resistance
- RS200™ Zinc-Aluminum Rich Coating
- Optimal Surface Finish
- For consistent and confident braking from the first stop
- Carbon Enhanved Advanced Metallurgy
- For optimal heat transfer and structural strength
- OE Vane Design and Plate Thickness
- For heat capacity and strength
- Low Initial Lateral Run-Out
- For smooth vibration free stopping
- Precision Balance
- For vibration free performance
CENTRIC 320.62137 Specifications
Product Attributes
| Product Grade [cntrc] | Premium |
| Disc Mounting [cntrc] | Floating / DIH |
| Weight [cntrc] Kgs | 10.200 |
| Hat Id [cntrc] Mm | 214.600 |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Max Pb Drum Dia [cntrc] Mm | 218.500 |
| Misc Holes [cntrc] | 1 |
| Weight [cntrc] Lbs | 22.450 |
| Max Pb Drum Dia [cntrc] In | 8.602 |
| Hat Id [cntrc] In | 8.449 |
| Discard Thickness | 19.500 MM |
| Discard Thickness | 0.768 IN |
| Nominal Thickness | 21.000 MM |
| Nominal Thickness | 0.827 IN |
| Disc Finish | Partially Coated |
| Hat Finish | Coated |
| Overall Height | 61.500 MM |
| Overall Height | 2.421 IN |
| Outside Diameter | 13.780 IN |
| Outside Diameter | 350.000 MM |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Nominal Drum Diameter | 217.900 MM |
| Nominal Drum Diameter | 8.579 IN |
| Bearings Included | No |
| Center Hole Diameter | 78.600 MM |
| Center Hole Diameter | 3.094 IN |
| Mounting Bolt Hole Circle Diameter | 139.800 MM |
| Mounting Bolt Hole Circle Diameter | 5.504 IN |
| Stud/Lug Hole Quantity | 6 |
| Stud/Lug Hole Diameter | 16.000 MM |
| Stud/Lug Hole Diameter | 0.630 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 00889590391992 |
